SKU: 30210-TIM

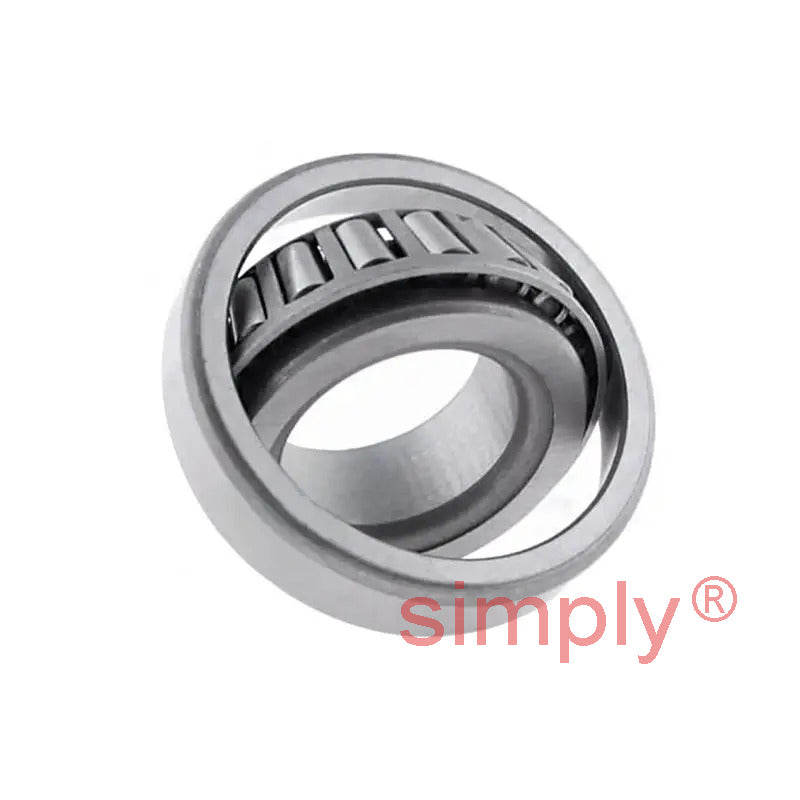

Timken 30210 Metric Taper Roller Bearing 50x90x21.75mm
- Regular price
- €57,95 ex VAT
- Sale price
- €57,95
- Regular price
-
In stock
Quantity Price Breaks
10
€51,58
20
€48,68
30
€48,10
40
€47,52
50
€46,94
75
€46,36
100
€43,46
200
€42,88
250
€42,30
500
€41,72
1000
€40,57
SKU:
30210-TIM
Timken 30210 Metric Taper Roller Bearing 50x90x21.75mm
- Regular price
- €57,95 ex VAT
- Sale price
- €57,95
- Regular price
-
Description
|
Metric Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
Technical
| d | = | 50mm |
| D | = | 90mm |
| T | = | 21.75mm |
| Dynamic load | = | 76.5 kN |
| Static load | = | 91.5 kN |
| Fatigue load limit Pu | = | 10.4 kN |
| Reference speed | = | 5600 rpm |
| Limiting speed | = | 7500 rpm |
| Mass | = | 0.54 kg |
| d1 | = | 67.9mm |
| B | = | 20mm |
| C | = | 17mm |
| r1r2 min | = | 1.5mm |
| r3r4 min | = | 1.5mm |
| a | = | 19mm |
| da max | = | 58mm |
| db min | = | 57mm |
| Da min | = | 79mm |
| Da max | = | 83mm |
| Db min | = | 85mm |
| Ca min | = | 3mm |
| Cb min | = | 4.5mm |
| ra max | = | 1.5mm |
| rb max | = | 1.5mm |
| e | = | 0.43 |
| Y | = | 1.4 |
| Y0 | = | 0.8 |
