SKU: 28B-3-NO11-DUN
Branded 28B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-3/4 inch Pitch
- Regular price
- €41,68 ex VAT
- Sale price
- €41,68
- Regular price
-
Not in stock
Quantity Price Breaks
2
€37,10
5
€35,01
10
€34,59
29
€34,18
49
€33,76
75
€33,34
100
€31,26
200
€30,84
250
€30,43
500
€30,01
1000
€29,18
SKU:
28B-3-NO11-DUN
Branded 28B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-3/4 inch Pitch
- Regular price
- €41,68 ex VAT
- Sale price
- €41,68
- Regular price
-
Description

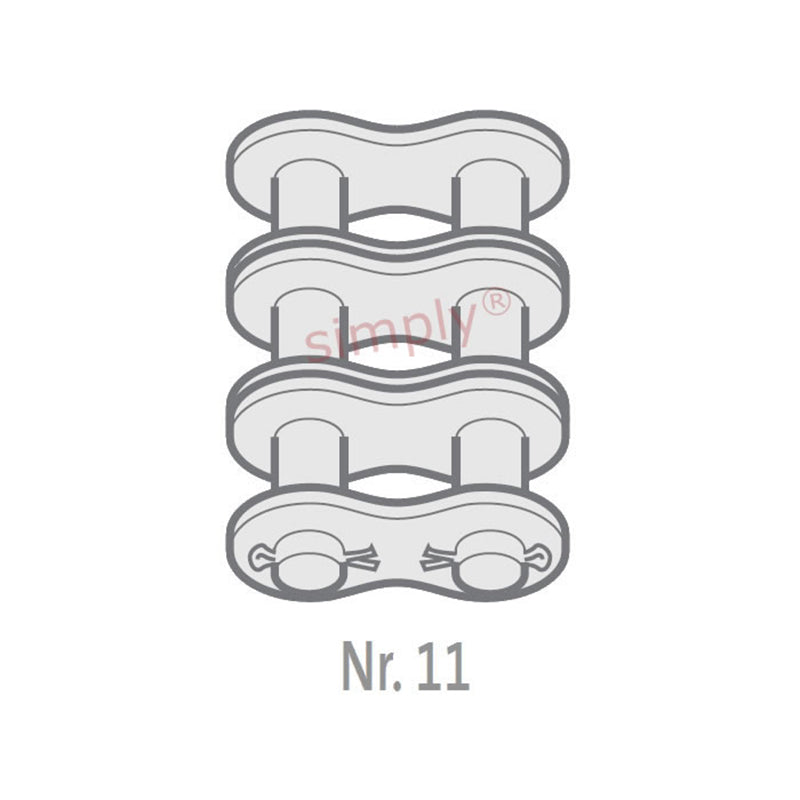

Dunlop COT / No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Technical
| Pitch (A) | = | 1.75 inch |
| Pitch (A) | = | 44.45mm |
| Inside Width min (B) | = | 30.99mm |
| Roller Diameter max (C) | = | 27.94mm |
| Plate Height max (D) | = | 36.9mm |
| Plate Width Inner max (E) | = | 7.4mm |
| Plate Width Outer max (F) | = | 6.4mm |
| Pin Diameter max (G) | = | 15.9mm |
| Pin Length max (H3) | = | 175.6mm |
| Connecting Link Extension max (J) | = | 14.1mm |
| ISO606 Tensile Strength min | = | 580000 N |
| Weight | = | 0.4kg/m |
