SKU: 28B-1-BB-NO12-RENOLD
Renold Blue Box 28B-1-NO12 BS Simplex Single Cranked Cottered Link 1-3/4 inch Pitch
- Regular price
- €109,70 ex VAT
- Sale price
- €109,70
- Regular price
-
In stock
Quantity Price Breaks
2
€97,63
5
€92,15
10
€91,05
29
€89,95
49
€88,86
75
€87,76
100
€82,28
200
€81,18
250
€80,08
500
€78,98
1000
€76,79
SKU:
28B-1-BB-NO12-RENOLD
Renold Blue Box 28B-1-NO12 BS Simplex Single Cranked Cottered Link 1-3/4 inch Pitch
- Regular price
- €109,70 ex VAT
- Sale price
- €109,70
- Regular price
-
Description

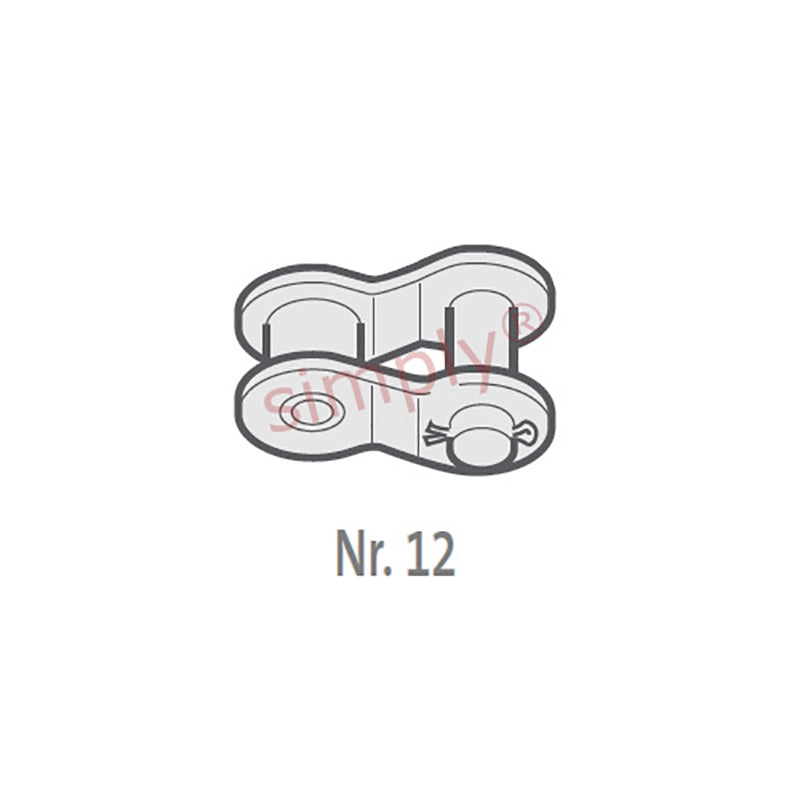

| Renold No. 12 European (BS) Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 1.75 inch |
| Pitch (A) | = | 44.45mm |
| Inside Width min (B) | = | 30.99mm |
| Roller Diameter max (C) | = | 27.94mm |
| Plate Height max (D) | = | 37.08mm |
| Plate Width Inner max (E) | = | 7.62mm |
| Plate Width Outer max (F) | = | 6.35mm |
| Pin Diameter max (G) | = | 15.9mm |
| Pin Length max (H1) | = | 64.2mm |
| Connecting Link Extension max (J) | = | 6.8mm |
| ISO606 Tensile Strength min | = | 200000 N |
| Weight | = | 0.13kg/m |
