SKU: 24B-3-SD-NO26-RENOLD
Renold SD 24B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1-1/2 inch Pitch
- Regular price
- €43,25 ex VAT
- Sale price
- €43,25
- Regular price
-
Not in stock
Quantity Price Breaks
2
€38,49
5
€36,33
10
€35,90
29
€35,47
49
€35,03
75
€34,60
100
€32,44
200
€32,01
250
€31,57
500
€31,14
1000
€30,28
SKU:
24B-3-SD-NO26-RENOLD
Renold SD 24B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1-1/2 inch Pitch
- Regular price
- €43,25 ex VAT
- Sale price
- €43,25
- Regular price
-
Description

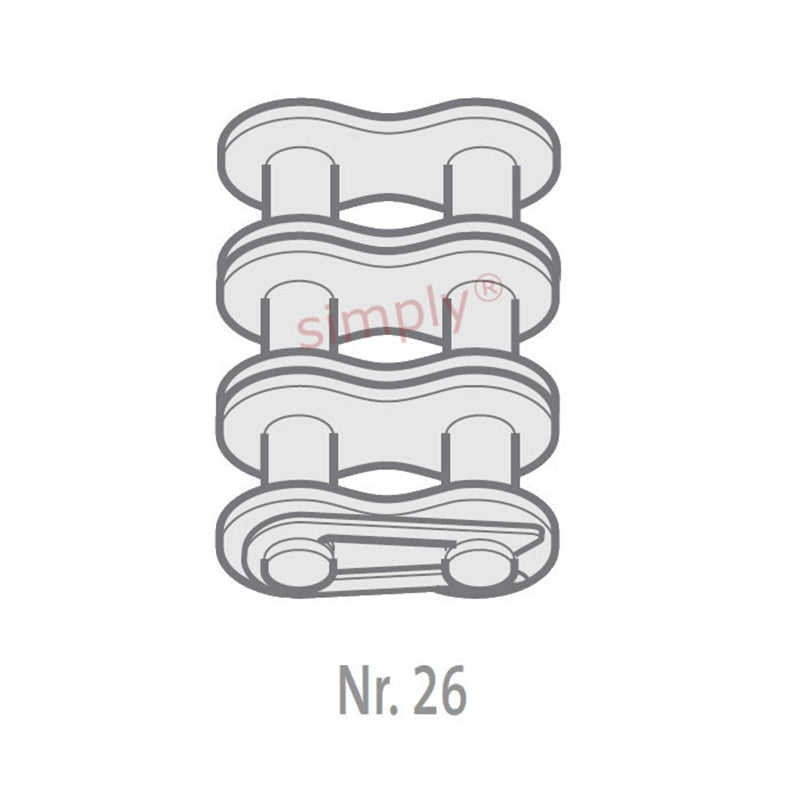

| Renold No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 1.5 inch |
| Pitch (A) | = | 38.1mm |
| Inside Width min (B) | = | 25.4mm |
| Roller Diameter max (C) | = | 25.4mm |
| Plate Height max (D) | = | 33.3mm |
| Plate Width Inner max (E) | = | 6mm |
| Plate Width Outer max (F) | = | 5.2mm |
| Pin Diameter max (G) | = | 14.63mm |
| Pin Length max (H1) | = | 143.1mm |
| Connecting Link Extension max (J) | = | 12.6mm |
| ISO606 Tensile Strength min | = | 460000 N |
| Weight | = | 0.28kg/m |
