SKU: 24B-3-SD-NO11-RENOLD
Renold SD 24B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-1/2 inch Pitch
- Regular price
- €49,11 ex VAT
- Sale price
- €49,11
- Regular price
-
Not in stock
Quantity Price Breaks
2
€43,71
5
€41,25
10
€40,76
29
€40,27
49
€39,78
75
€39,29
100
€36,83
200
€36,34
250
€35,85
500
€35,36
1000
€34,38
SKU:
24B-3-SD-NO11-RENOLD
Renold SD 24B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-1/2 inch Pitch
- Regular price
- €49,11 ex VAT
- Sale price
- €49,11
- Regular price
-
Description

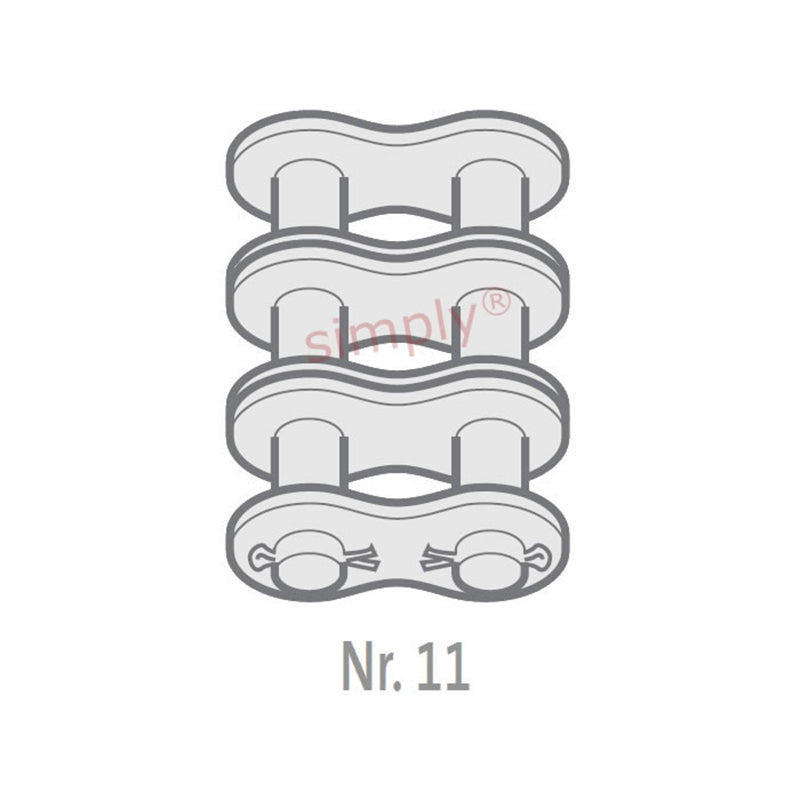

| Renold No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1.5 inch |
| Pitch (A) | = | 38.1mm |
| Inside Width min (B) | = | 25.4mm |
| Roller Diameter max (C) | = | 25.4mm |
| Plate Height max (D) | = | 33.3mm |
| Plate Width Inner max (E) | = | 6mm |
| Plate Width Outer max (F) | = | 5.2mm |
| Pin Diameter max (G) | = | 14.63mm |
| Pin Length max (H1) | = | 143.1mm |
| Connecting Link Extension max (J) | = | 12.6mm |
| ISO606 Tensile Strength min | = | 460000 N |
| Weight | = | 0.28kg/m |
