SKU: 24B-2-NO11-MB
Branded 24B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-1/2 inch Pitch
- Regular price
- €20,54 ex VAT
- Sale price
- €20,54
- Regular price
-
In stock
Quantity Price Breaks
2
€18,28
5
€17,25
10
€17,05
29
€16,84
49
€16,64
75
€16,43
100
€15,41
200
€15,20
250
€14,99
500
€14,79
1000
€14,38
SKU:
24B-2-NO11-MB
Branded 24B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-1/2 inch Pitch
- Regular price
- €20,54 ex VAT
- Sale price
- €20,54
- Regular price
-
Description

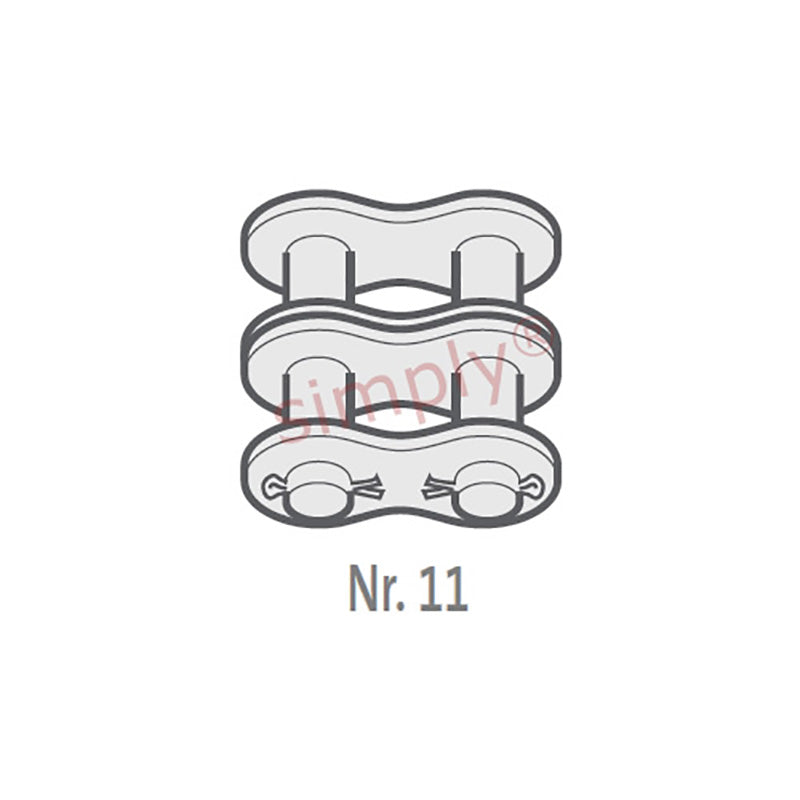

Dunlop COT / No. 11 European (BS) Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Technical
| Pitch (A) | = | 1.5 inch |
| Pitch (A) | = | 38.1mm |
| Inside Width min (B) | = | 25.4mm |
| Roller Diameter max (C) | = | 25.4mm |
| Plate Height max (D) | = | 33.3mm |
| Plate Width Inner max (E) | = | 6mm |
| Plate Width Outer max (F) | = | 5.2mm |
| Pin Diameter max (G) | = | 14.63mm |
| Pin Length max (H2) | = | 101.6mm |
| Connecting Link Extension max (J) | = | 4.30000000000001mm |
| Transverse Pitch nom (K) | = | 48.36mm |
| ISO606 Tensile Strength min | = | 280000 N |
| Weight | = | 0.19kg/m |
