SKU: 24B-1-SNX-NO30-RENOLD
Renold SYNO 24B-1-NO30 BS Simplex Chain Double Cranked Link 1-1/2 inch Pitch
- Regular price
- €256,86 ex VAT
- Sale price
- €256,86
- Regular price
-
Not in stock
Quantity Price Breaks
2
€228,61
5
€215,76
10
€213,19
29
€210,63
49
€208,06
75
€205,49
100
€192,65
200
€190,08
250
€187,51
500
€184,94
1000
€179,80
SKU:
24B-1-SNX-NO30-RENOLD
Renold SYNO 24B-1-NO30 BS Simplex Chain Double Cranked Link 1-1/2 inch Pitch
- Regular price
- €256,86 ex VAT
- Sale price
- €256,86
- Regular price
-
Description

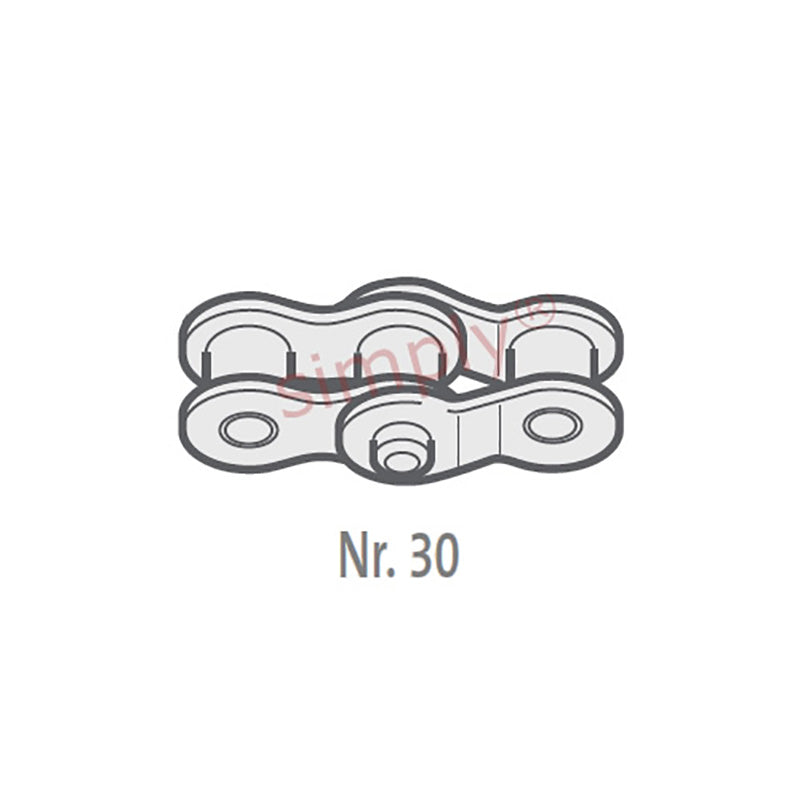

| Renold No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 1.5 inch |
| Pitch (A) | = | 38.1mm |
| Inside Width min (B) | = | 25.4mm |
| Roller Diameter max (C) | = | 25.4mm |
| Plate Height max (D) | = | 33.4mm |
| Plate Width Inner max (E) | = | 6.1mm |
| Plate Width Outer max (F) | = | 5.08mm |
| Pin Diameter max (G) | = | 14.63mm |
| Pin Length max (H1) | = | 52.6mm |
| Connecting Link Extension max (J) | = | 6.8mm |
| ISO606 Tensile Strength min | = | 160000 N |
| Weight | = | 0.09kg/m |
