SKU: 24B-1-SD-NO11-RENOLD
Renold SD 24B-1-NO11 BS Simplex Chain Cottered Connecting Link 1-1/2 inch Pitch
- Regular price
- €17,46 ex VAT
- Sale price
- €17,46
- Regular price
-
In stock
Quantity Price Breaks
2
€15,54
5
€14,67
10
€14,49
29
€14,32
49
€14,14
75
€13,97
100
€13,10
200
€12,92
250
€12,75
500
€12,57
1000
€12,22
SKU:
24B-1-SD-NO11-RENOLD
Renold SD 24B-1-NO11 BS Simplex Chain Cottered Connecting Link 1-1/2 inch Pitch
- Regular price
- €17,46 ex VAT
- Sale price
- €17,46
- Regular price
-
Description

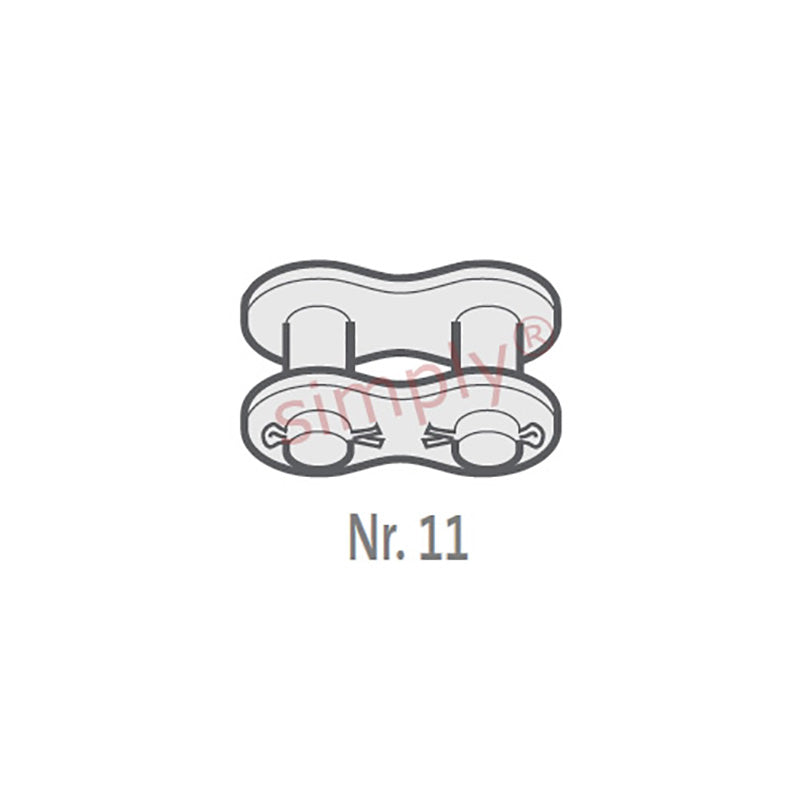

| Renold No. 11 European (BS) Simplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1.5 inch |
| Pitch (A) | = | 38.1mm |
| Inside Width min (B) | = | 25.4mm |
| Roller Diameter max (C) | = | 25.4mm |
| Plate Height max (D) | = | 33.3mm |
| Plate Width Inner max (E) | = | 6mm |
| Plate Width Outer max (F) | = | 5.2mm |
| Pin Diameter max (G) | = | 14.63mm |
| Pin Length max (H1) | = | 53.3mm |
| Connecting Link Extension max (J) | = | 4.2mm |
| ISO606 Tensile Strength min | = | 160000 N |
| Weight | = | 0.005kg/m |
