SKU: 24B-1-NO11-MB
Branded 24B-1-NO11 BS Simplex Chain Cottered Connecting Link 1-1/2 inch Pitch
- Regular price
- €12,56 ex VAT
- Sale price
- €12,56
- Regular price
-
Not in stock
Quantity Price Breaks
2
€11,18
5
€10,55
10
€10,42
29
€10,30
49
€10,17
75
€10,05
100
€9,42
200
€9,29
250
€9,17
500
€9,04
1000
€8,79
SKU:
24B-1-NO11-MB
Branded 24B-1-NO11 BS Simplex Chain Cottered Connecting Link 1-1/2 inch Pitch
- Regular price
- €12,56 ex VAT
- Sale price
- €12,56
- Regular price
-
Description

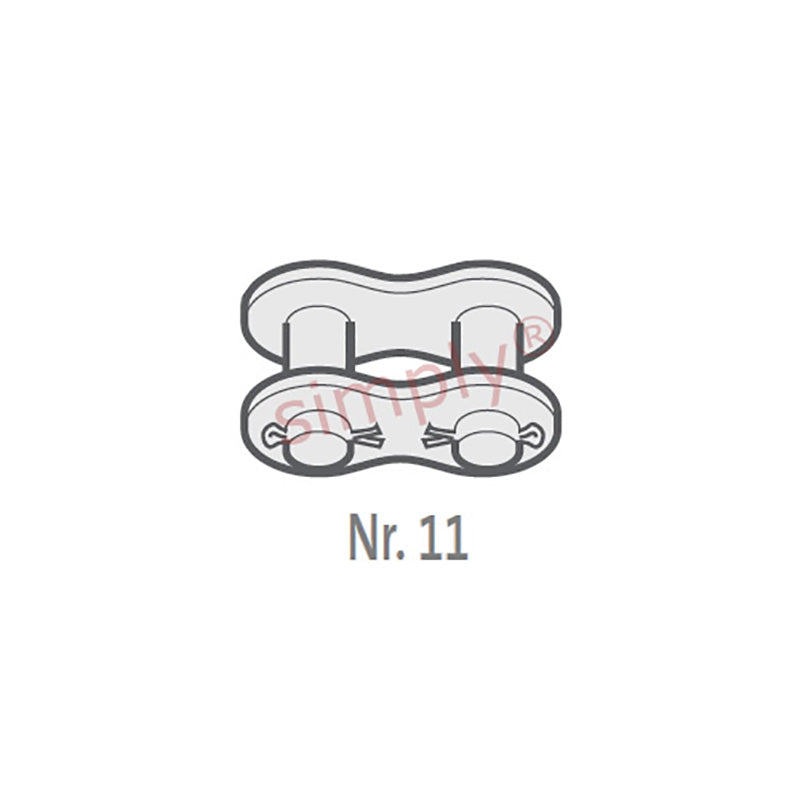

Branded COT / No. 11 European (BS) Simplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Technical
| Pitch (A) | = | 1.5 inch |
| Pitch (A) | = | 38.1mm |
| Inside Width min (B) | = | 25.4mm |
| Roller Diameter max (C) | = | 25.4mm |
| Plate Height max (D) | = | 33.3mm |
| Plate Width Inner max (E) | = | 6mm |
| Plate Width Outer max (F) | = | 5.2mm |
| Pin Diameter max (G) | = | 14.63mm |
| Pin Length max (H1) | = | 53.3mm |
| Connecting Link Extension max (J) | = | 4.2mm |
| ISO606 Tensile Strength min | = | 160000 N |
| Weight | = | 0.09kg/m |
