SKU: 24B-1-BB-NO12-RENOLD
Renold Blue Box 24B-1-NO12 BS Simplex Single Cranked Cottered Link 1-1/2 inch Pitch
- Regular price
- €82,57 ex VAT
- Sale price
- €82,57
- Regular price
-
Not in stock
Quantity Price Breaks
2
€73,49
5
€69,36
10
€68,53
29
€67,71
49
€66,88
75
€66,06
100
€61,93
200
€61,10
250
€60,28
500
€59,45
1000
€57,80
SKU:
24B-1-BB-NO12-RENOLD
Renold Blue Box 24B-1-NO12 BS Simplex Single Cranked Cottered Link 1-1/2 inch Pitch
- Regular price
- €82,57 ex VAT
- Sale price
- €82,57
- Regular price
-
Description

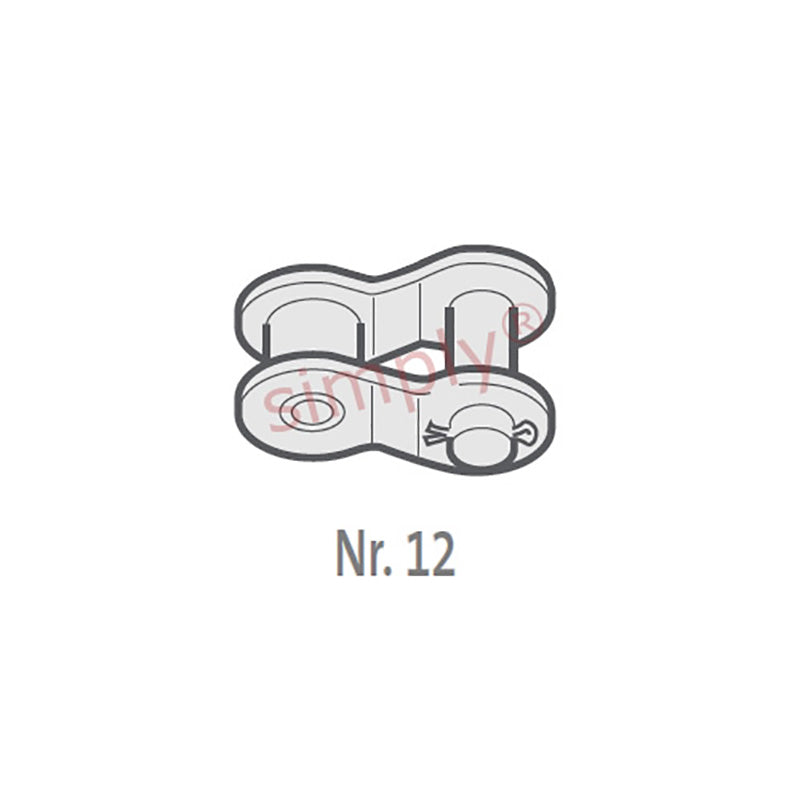

| Renold No. 12 European (BS) Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 1.5 inch |
| Pitch (A) | = | 38.1mm |
| Inside Width min (B) | = | 25.4mm |
| Roller Diameter max (C) | = | 25.4mm |
| Plate Height max (D) | = | 33.4mm |
| Plate Width Inner max (E) | = | 6.1mm |
| Plate Width Outer max (F) | = | 5.08mm |
| Pin Diameter max (G) | = | 14.63mm |
| Pin Length max (H1) | = | 52.6mm |
| Connecting Link Extension max (J) | = | 6.8mm |
| ISO606 Tensile Strength min | = | 160000 N |
| Weight | = | 0.09kg/m |
