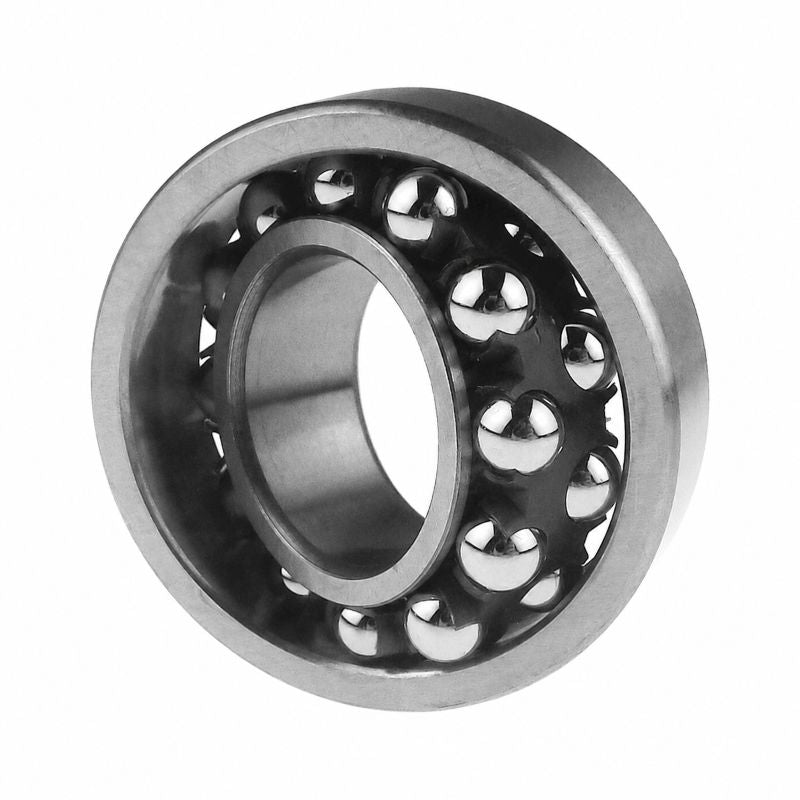

• 2312K Budget Open Self Aligning Ball Bearing with Taper Bore 60x130x46mm
1 1

SKU: 2312K-EU

2312K Budget Open Self Aligning Ball Bearing with Taper Bore 60x130x46mm

2312K Budget Open Self Aligning Ball Bearing with Taper Bore 60x130x46mm
€41,15 ex VAT
€41,15 ex VAT
Sale Sold out

Equivalent to: 2312EK

In stock

Price Break
10+ €31,27
19+ €29,52
29+ €29,17
39+ €28,81
49+ €28,46
74+ €28,11
99+ €26,35
199+ €26,00
249+ €25,65
499+ €25,30
999+ €24,60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SAB1_DESC
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
60mm
Outside Diameter:
130mm
Width:
46mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Dimensions
d 60mm
D 130mm
B 46mm
D1 112mm
d1d2 76.9mm
r1r2 2.1mm
da min 72mm
Da max 118mm
ra max 2mm
--- Calculation Data
C 87.1kN
Co 28.522
Pu 1.46kN
ref 9500rpm
limit 7000rpm
e 0.33
Y1 1.9
Y2 3
Y0 2
--- Weights
kg 2.6
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H2312+sleeve>H2312</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS2312+sleeve>HS2312</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX2312+sleeve>AHX2312</a>
