SKU: 23124-E1A-K-M-C3-FAG

FAG 23124E1AKMC3 X-life Spherical Roller Bearing with Taper Bore 120x200x62mm

Name: FAG 23124E1AKMC3 X-life Spherical Roller Bearing with Taper Bore 120x200x62mm
Brand: FAG
SKU: 23124-E1A-K-M-C3-FAG
Price: 597.30 EUR
Availability: InStock

€597,30 ex VAT

Sale Sold out

Equivalent to: 23124KC3

In stock

Price Break

3+ €453,92

4+ €428,42

9+ €423,32

19+ €418,22

29+ €413,12

39+ €408,02

49+ €382,52

59+ €377,41

249+ €372,31

499+ €367,21

999+ €357,01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options

Brand / Quality:: FAG - High Quality
Inside Diameter:: 120mm
Outside Diameter:: 200mm
Width:: 62mm
Seals / Shields:: None
Clearance:: C3

Technical

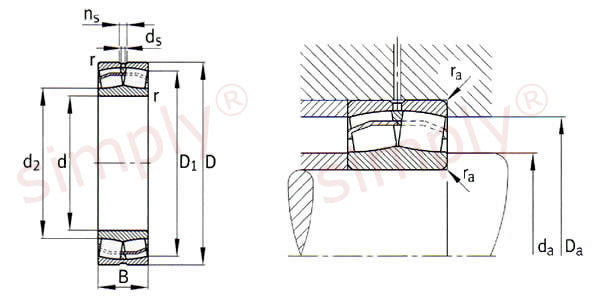

---	Dimensions
d	120mm
D	200mm
B	62mm
r min.	2mm
D1	177.4mm
ds	4.8mm
ns	9.5mm
da min.	131mm
Da max.	189mm
ra max.	2mm
---	Loads, Speeds and Weights
Fatigue limit load	73000 N
Limiting speed	3400 rpm
Reference speed	2290 rpm
Dynamic Load Rating	630000 N
Static Load Rating	800000 N
Weight	7.57kg
---	Factors
e	0.28
Y1	2.39
Y2	3.56
Y0	2.34
---	Matching Adaptor Sleeves
Sleeve No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H3124+sleeve>H3124</a>
Sleeve No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE3124+sleeve>HE3124</a>
---	Matching Withdrawal Sleeves
Sleeve No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX3124+sleeve>AHX3124</a>
