SKU: 23024-E1A-K-Mu-FAG

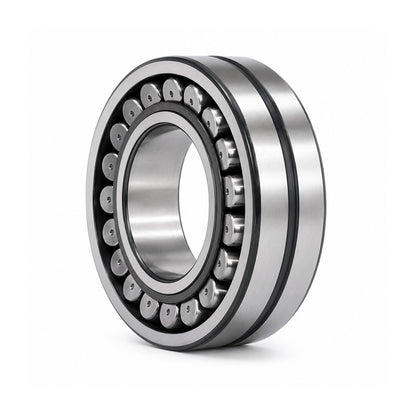

FAG 23024E1AKM X-life Spherical Roller Bearing with AHX3024 Withdrawal Sleeve 115x180x46mm
FAG 23024E1AKM X-life Spherical Roller Bearing with AHX3024 Withdrawal Sleeve 115x180x46mm
Regular price
€560,42
ex VAT
Regular price
Sale price
€560,42
ex VAT
In stock
Price Break
3+
€425,89
4+
€401,97
9+
€397,18
19+
€392,39
29+
€387,61
39+
€382,82
49+
€358,90
59+
€354,11
249+
€349,33
499+
€344,54
999+
€334,97
Quantity
Couldn't load pickup availability
Description
Description
SPHERWITHD_DESC
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 115mm
- Outside Diameter:
- 180mm
- Width:
- 46mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1H | 115mm |
|---|---|
| d | 120mm |
| D | 180mm |
| B | 46mm |
| r min | 2mm |
| D1 | 164.7mm |
| ds | 3.2mm |
| ns | 6.5mm |
| a | 4mm |
| b | 13mm |
| Thread d2G | M130X2 |
| l | 60mm |
| da min | 128.8mm |
| Da max | 171.2mm |
| ra max | 2mm |
| Dynamic load Cr | 430000 N |
| Static load C0r | 580000 N |
| e | 0.22 |
| Y1 | 3.04 |
| Y2 | 4.53 |
| Y0 | 2.97 |
| Fatigue load limit Cur | 58000 N |
| Limiting speed nG | 4300 rpm |
| Reference speed nB | 2800 rpm |
| Bearing weight | 4.09 kg |
| Withdrawal sleeve weight | 0.741 kg |
