SKU: 21310-E1-K-C3u?FAG

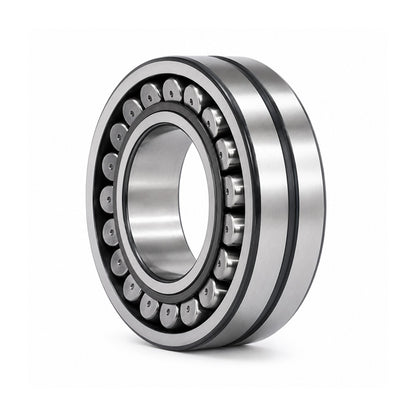

FAG 21310E1KC3 X-life Spherical Roller Bearing with AHX310 Withdrawal Sleeve 45x110x27mm
- Regular price
- €145,99 ex VAT
- Sale price
- €145,99
- Regular price
-
Not in stock
Quantity Price Breaks
3
€129,93
4
€122,63
9
€121,17
19
€119,71
29
€118,25
39
€116,79
49
€109,49
59
€108,03
249
€106,57
499
€105,11
999
€102,19
SKU:
21310-E1-K-C3u?FAG
FAG 21310E1KC3 X-life Spherical Roller Bearing with AHX310 Withdrawal Sleeve 45x110x27mm
- Regular price
- €145,99 ex VAT
- Sale price
- €145,99
- Regular price
-
Description
SPHERWITHD_DESC

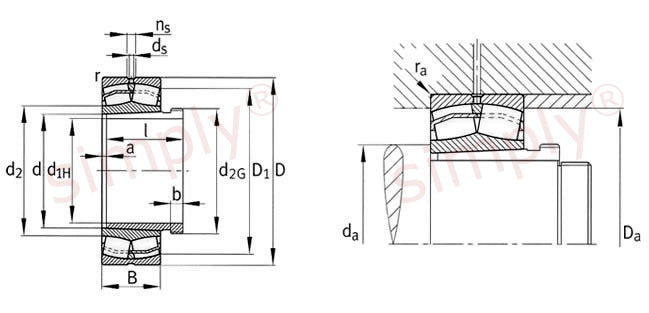

Technical
| d1H | = | 45mm |
| d | = | 50mm |
| D | = | 110mm |
| B | = | 27mm |
| r min | = | 2mm |
| D1 | = | 89.8mm |
| d2 | = | 67.3mm |
| ds | = | 3.2mm |
| ns | = | 4.8mm |
| a | = | 3mm |
| b | = | 7mm |
| Thread d2G | = | M55X2 |
| l | = | 35mm |
| da min | = | 61mm |
| Da max | = | 99mm |
| ra max | = | 2mm |
| Dynamic load Cr | = | 129000 N |
| Static load C0r | = | 130000 N |
| e | = | 0.23 |
| Y1 | = | 2.92 |
| Y2 | = | 4.35 |
| Y0 | = | 2.86 |
| Fatigue load limit Cur | = | 17300 N |
| Limiting speed nG | = | 8500 rpm |
| Reference speed nB | = | 5400 rpm |
| Bearing weight | = | 1.28 kg |
| Withdrawal sleeve weight | = | 0.138 kg |
