SKU: 20B-3-BB-NO11-RENOLD
Renold Blue Box 20B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
- Regular price
- €62,36 ex VAT
- Sale price
- €62,36
- Regular price
-
Not in stock
Quantity Price Breaks
2
€55,50
5
€52,38
10
€51,76
29
€51,14
49
€50,51
75
€49,89
100
€46,77
200
€46,15
250
€45,52
500
€44,90
1000
€43,65
SKU:
20B-3-BB-NO11-RENOLD
Renold Blue Box 20B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
- Regular price
- €62,36 ex VAT
- Sale price
- €62,36
- Regular price
-
Description

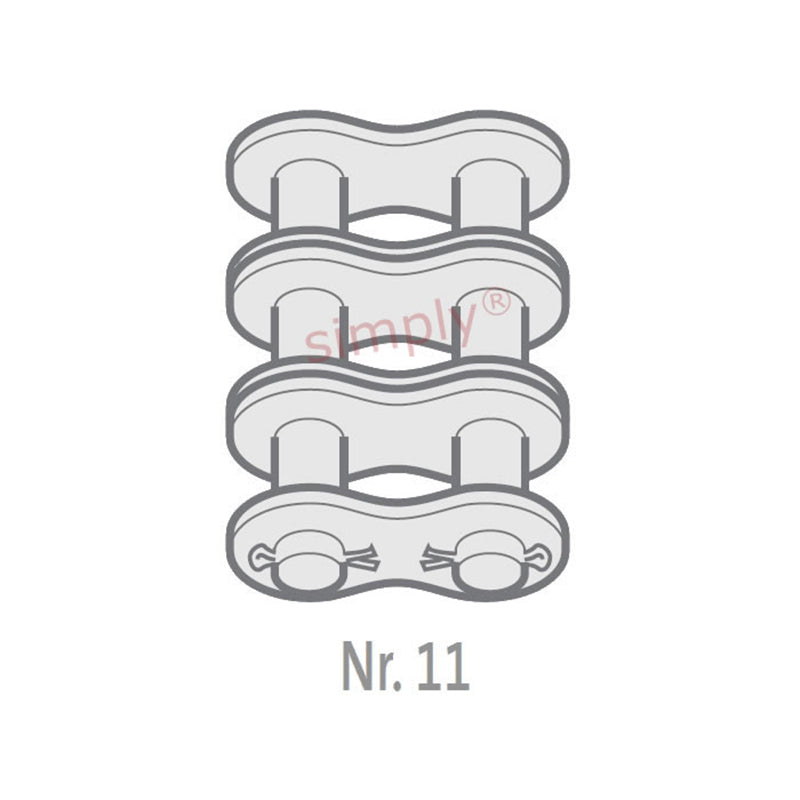

| Renold No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1.25 inch |
| Pitch (A) | = | 31.75mm |
| Inside Width min (B) | = | 19.56mm |
| Roller Diameter max (C) | = | 19.05mm |
| Plate Height max (D) | = | 26.42mm |
| Plate Width Inner max (E) | = | 4.62mm |
| Plate Width Outer max (F) | = | 3.61mm |
| Pin Diameter max (G) | = | 10.19mm |
| Pin Length max (H2) | = | 113.2mm |
| Connecting Link Extension max (J) | = | 2.7mm |
| Transverse Pitch nom (K) | = | 36.45mm |
| ISO606 Tensile Strength min | = | 250000 N |
| Weight | = | 0.22kg/m |
