SKU: 20B-2-BB-NO11-RENOLD
Renold Blue Box 20B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-1/4 inch Pitch
- Regular price
- €41,44 ex VAT
- Sale price
- €41,44
- Regular price
-
In stock
Quantity Price Breaks
2
€36,88
5
€34,81
10
€34,40
29
€33,98
49
€33,57
75
€33,15
100
€31,08
200
€30,67
250
€30,25
500
€29,84
1000
€29,01
SKU:
20B-2-BB-NO11-RENOLD
Renold Blue Box 20B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-1/4 inch Pitch
- Regular price
- €41,44 ex VAT
- Sale price
- €41,44
- Regular price
-
Description

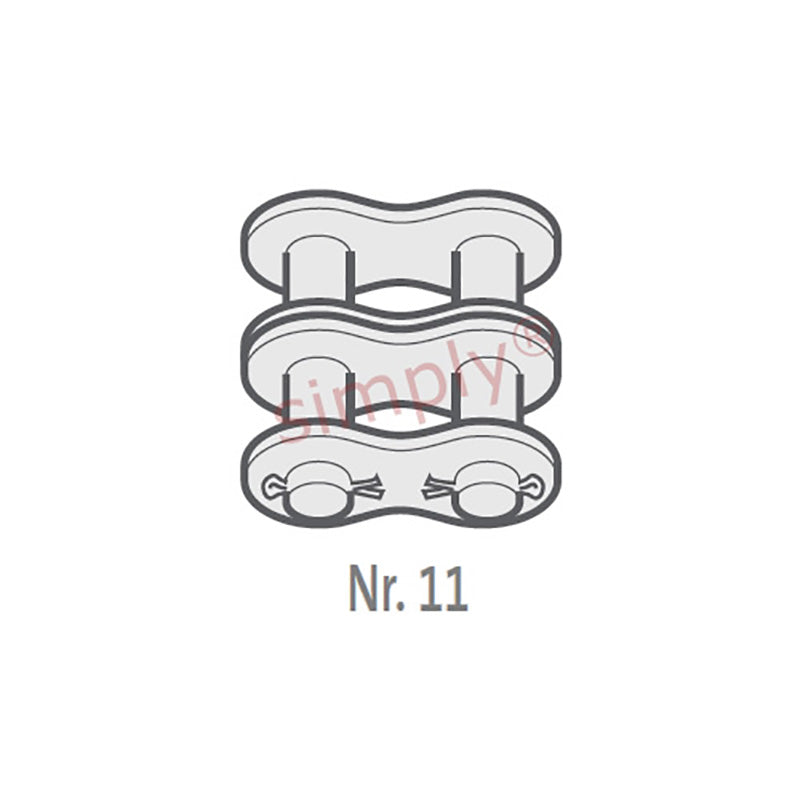

| Renold No. 11 European (BS) Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1.25 inch |
| Pitch (A) | = | 31.75mm |
| Inside Width min (B) | = | 19.56mm |
| Roller Diameter max (C) | = | 19.05mm |
| Plate Height max (D) | = | 26.42mm |
| Plate Width Inner max (E) | = | 4.62mm |
| Plate Width Outer max (F) | = | 3.61mm |
| Pin Diameter max (G) | = | 10.19mm |
| Pin Length max (H1) | = | 76.7mm |
| Connecting Link Extension max (J) | = | 2.7mm |
| ISO606 Tensile Strength min | = | 170000 N |
| Weight | = | 0.22kg/m |
