SKU: 20B-1-SYN-NO26-RENOLD

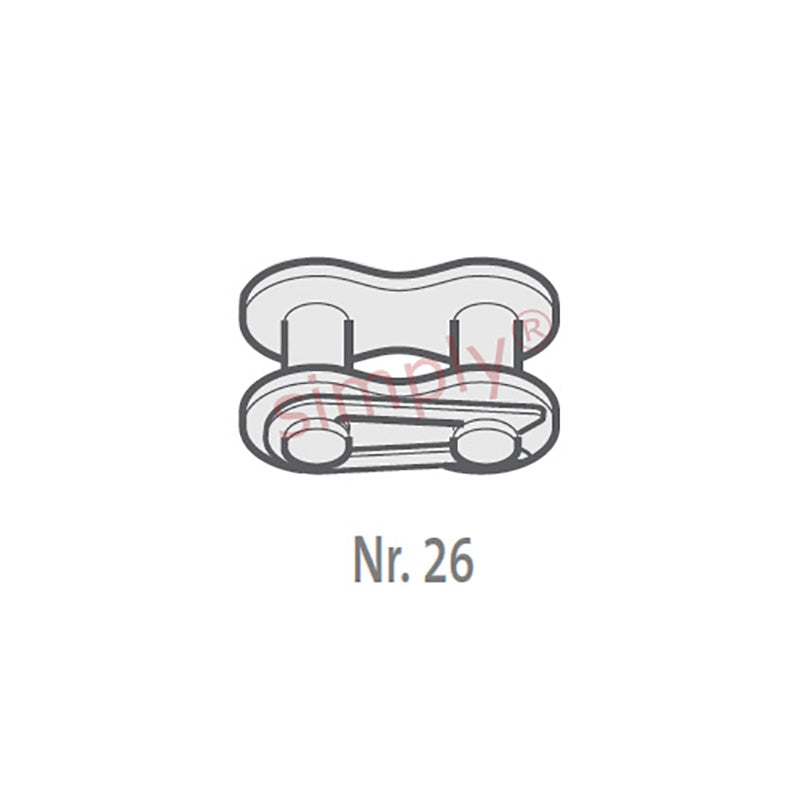

Renold Synergy 20B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 1-1/4 inch Pitch
- Regular price
- €49,88 ex VAT
- Sale price
- €49,88
- Regular price
-
Not in stock
Quantity Price Breaks
2
€44,39
5
€41,90
10
€41,40
29
€40,90
49
€40,40
75
€39,90
100
€37,41
200
€36,91
250
€36,41
500
€35,91
1000
€34,92
SKU:
20B-1-SYN-NO26-RENOLD
Renold Synergy 20B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 1-1/4 inch Pitch
- Regular price
- €49,88 ex VAT
- Sale price
- €49,88
- Regular price
-
Description
| Renold No. 26 European (BS) Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 1.25 inch |
| Pitch (A) | = | 31.75mm |
| Inside Width min (B) | = | 19.56mm |
| Roller Diameter max (C) | = | 19.05mm |
| Plate Height max (D) | = | 26.42mm |
| Plate Width Inner max (E) | = | 4.62mm |
| Plate Width Outer max (F) | = | 3.61mm |
| Pin Diameter max (G) | = | 10.19mm |
| Pin Length max (H1) | = | 39.8mm |
| Connecting Link Extension max (J) | = | 2.7mm |
| ISO606 Tensile Strength min | = | 95000 N |
| Weight | = | 0.04kg/m |
