SKU: 20B-1-SYN-NO12-RENOLD
Renold Synergy 20B-1-NO12 BS Simplex Chain Single Cranked Cottered Link 1-1/4 inch Pitch
- Regular price
- €88,06 ex VAT
- Sale price
- €88,06
- Regular price
-
Not in stock
Quantity Price Breaks
2
€78,37
5
€73,97
10
€73,09
29
€72,21
49
€71,33
75
€70,45
100
€66,05
200
€65,16
250
€64,28
500
€63,40
1000
€61,64
SKU:
20B-1-SYN-NO12-RENOLD
Renold Synergy 20B-1-NO12 BS Simplex Chain Single Cranked Cottered Link 1-1/4 inch Pitch
- Regular price
- €88,06 ex VAT
- Sale price
- €88,06
- Regular price
-
Description

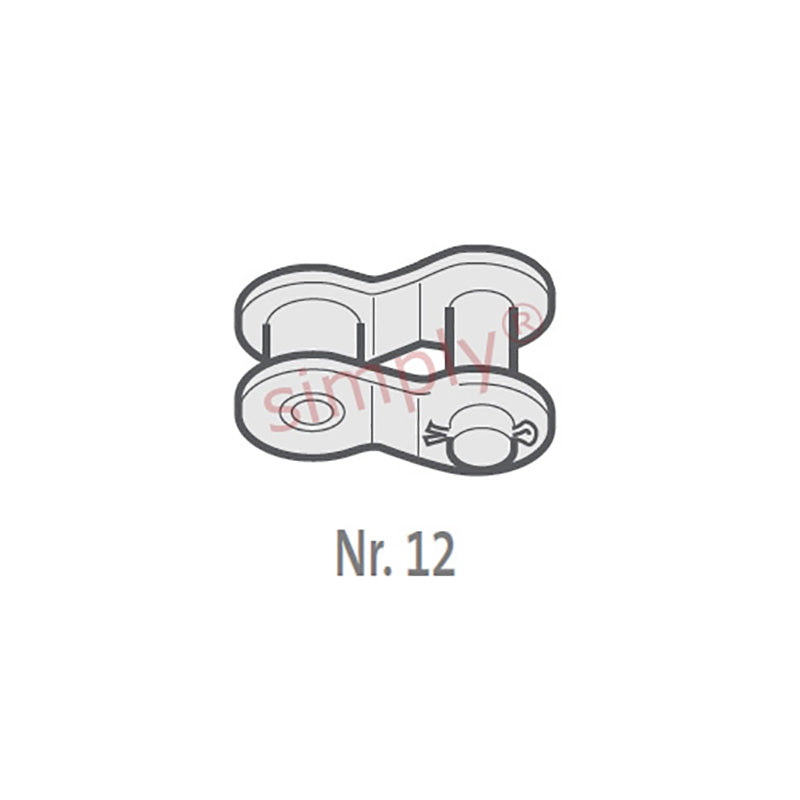

| Renold No. 12 European (BS) Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 1.25 inch |
| Pitch (A) | = | 31.75mm |
| Inside Width min (B) | = | 19.56mm |
| Roller Diameter max (C) | = | 19.05mm |
| Plate Height max (D) | = | 26.42mm |
| Plate Width Inner max (E) | = | 4.62mm |
| Plate Width Outer max (F) | = | 3.61mm |
| Pin Diameter max (G) | = | 10.19mm |
| Pin Length max (H1) | = | 39.8mm |
| Connecting Link Extension max (J) | = | 2.7mm |
| ISO606 Tensile Strength min | = | 95000 N |
| Weight | = | 0.041kg/m |
