SKU: 20B-1-SNX-NO30-RENOLD
Renold SYNO 20B-1-NO30 BS Simplex Chain Double Cranked Link 1-1/4 inch Pitch
- Regular price
- €113,55 ex VAT
- Sale price
- €113,55
- Regular price
-
Not in stock
Quantity Price Breaks
2
€101,06
5
€95,38
10
€94,25
29
€93,11
49
€91,98
75
€90,84
100
€85,16
200
€84,03
250
€82,89
500
€81,76
1000
€79,49
SKU:
20B-1-SNX-NO30-RENOLD
Renold SYNO 20B-1-NO30 BS Simplex Chain Double Cranked Link 1-1/4 inch Pitch
- Regular price
- €113,55 ex VAT
- Sale price
- €113,55
- Regular price
-
Description

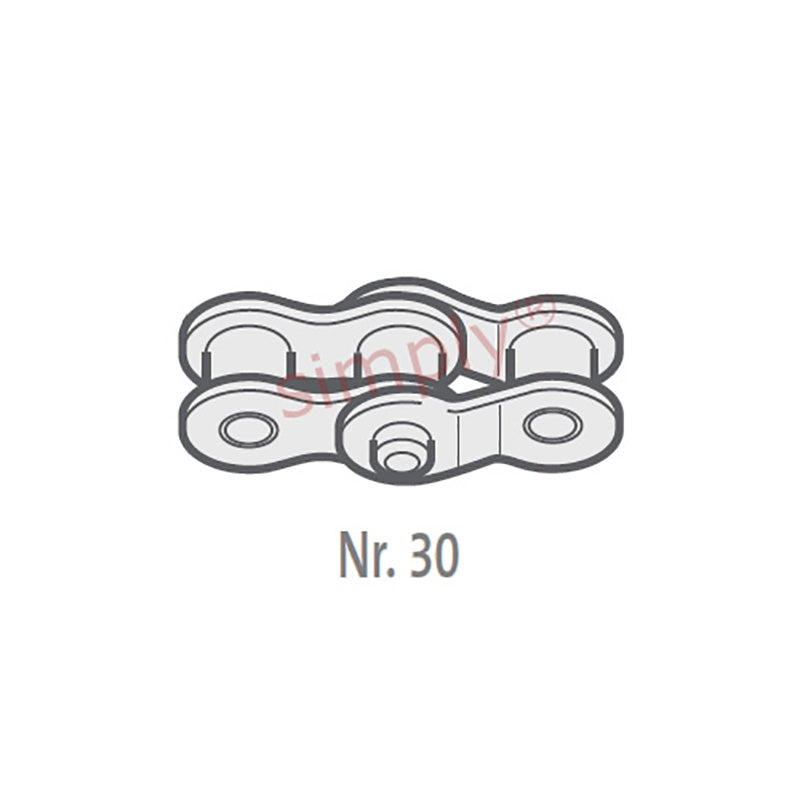

| Renold No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 1.25 inch |
| Pitch (A) | = | 31.75mm |
| Inside Width min (B) | = | 19.56mm |
| Roller Diameter max (C) | = | 19.05mm |
| Plate Height max (D) | = | 26.42mm |
| Plate Width Inner max (E) | = | 4.62mm |
| Plate Width Outer max (F) | = | 3.61mm |
| Pin Diameter max (G) | = | 10.19mm |
| Pin Length max (H1) | = | 39.8mm |
| Connecting Link Extension max (J) | = | 2.7mm |
| ISO606 Tensile Strength min | = | 95000 N |
| Weight | = | 0.04kg/m |
