SKU: 16B-3-SYN-NO26-RENOLD

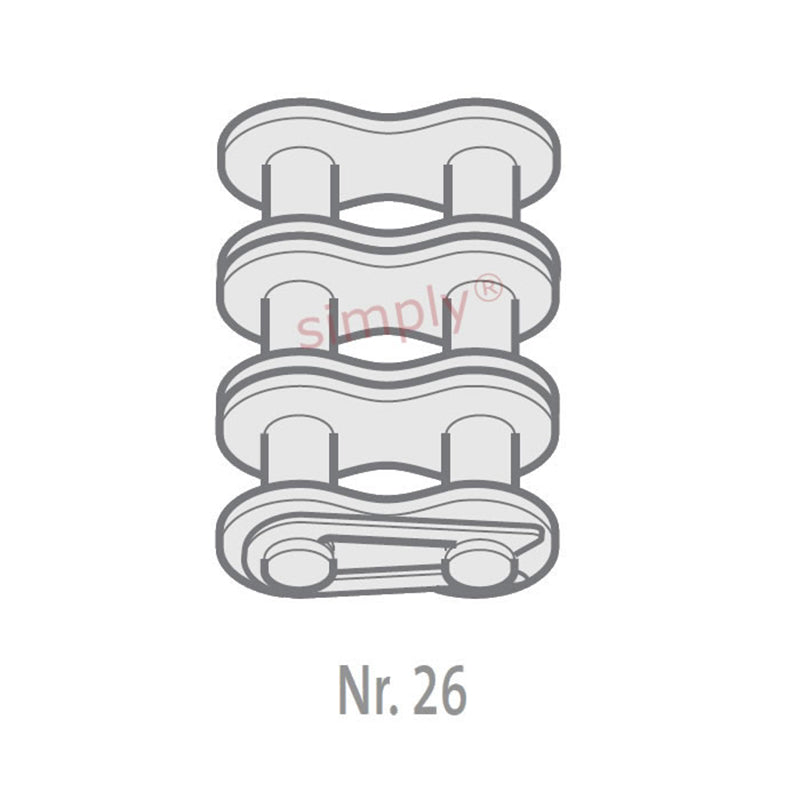

Renold Synergy 16B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
- Regular price
- €86,89 ex VAT
- Sale price
- €86,89
- Regular price
-
Not in stock
Quantity Price Breaks
2
€77,33
5
€72,99
10
€72,12
29
€71,25
49
€70,38
75
€69,51
100
€65,17
200
€64,30
250
€63,43
500
€62,56
1000
€60,82
SKU:
16B-3-SYN-NO26-RENOLD
Renold Synergy 16B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
- Regular price
- €86,89 ex VAT
- Sale price
- €86,89
- Regular price
-
Description
| Renold No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.08mm |
| Plate Width Inner max (E) | = | 4.12mm |
| Plate Width Outer max (F) | = | 3.1mm |
| Pin Diameter max (G) | = | 8.28mm |
| Pin Length max (H2) | = | 98.6mm |
| Connecting Link Extension max (J) | = | 2.2mm |
| Transverse Pitch nom (K) | = | 31.88mm |
| ISO606 Tensile Strength min | = | 160000 N |
| Weight | = | 0.046kg/m |
