SKU: 16B-3-SYN-NO12-RENOLD
Renold Synergy 16B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1 inch Pitch
- Regular price
- €179,18 ex VAT
- Sale price
- €179,18
- Regular price
-
Not in stock
Quantity Price Breaks
2
€159,47
5
€150,51
10
€148,72
29
€146,93
49
€145,14
75
€143,34
100
€134,39
200
€132,59
250
€130,80
500
€129,01
1000
€125,43
SKU:
16B-3-SYN-NO12-RENOLD
Renold Synergy 16B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1 inch Pitch
- Regular price
- €179,18 ex VAT
- Sale price
- €179,18
- Regular price
-
Description

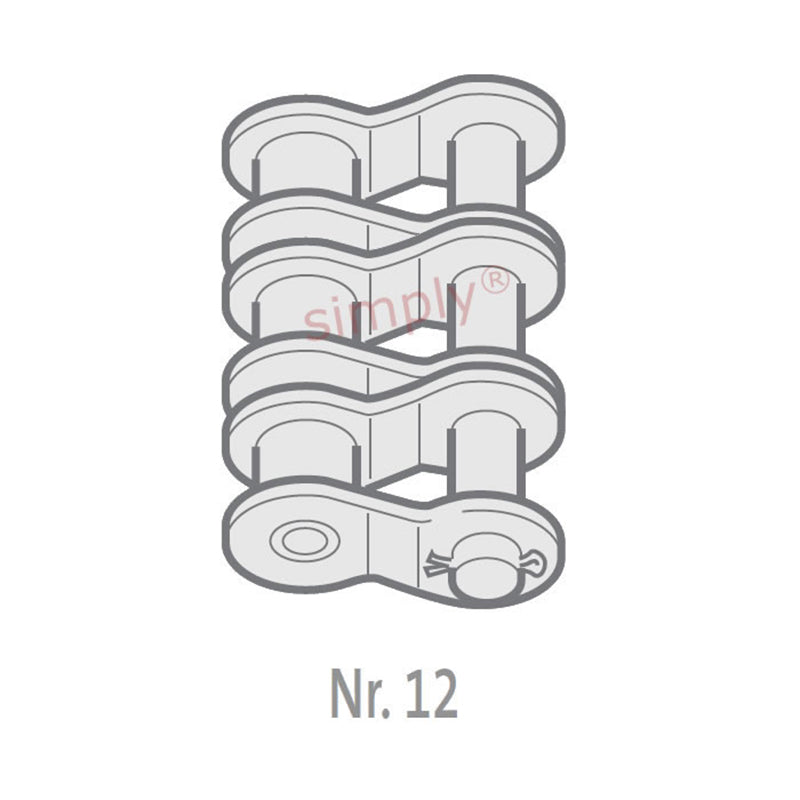

| Renold No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.08mm |
| Plate Width Inner max (E) | = | 4.12mm |
| Plate Width Outer max (F) | = | 3.1mm |
| Pin Diameter max (G) | = | 8.28mm |
| Pin Length max (H2) | = | 98.6mm |
| Connecting Link Extension max (J) | = | 2.2mm |
| Transverse Pitch nom (K) | = | 31.88mm |
| ISO606 Tensile Strength min | = | 160000 N |
| Weight | = | 0.046kg/m |
