SKU: 16B-3-NO30-MB
Branded 16B-3-NO30 BS Triplex Chain Double Cranked Link 1 inch Pitch
- Regular price
- €17,12 ex VAT
- Sale price
- €17,12
- Regular price
-
In stock
Quantity Price Breaks
2
€15,24
5
€14,38
10
€14,21
29
€14,04
49
€13,87
75
€13,70
100
€12,84
200
€12,67
250
€12,50
500
€12,33
1000
€11,98
SKU:
16B-3-NO30-MB
Branded 16B-3-NO30 BS Triplex Chain Double Cranked Link 1 inch Pitch
- Regular price
- €17,12 ex VAT
- Sale price
- €17,12
- Regular price
-
Description

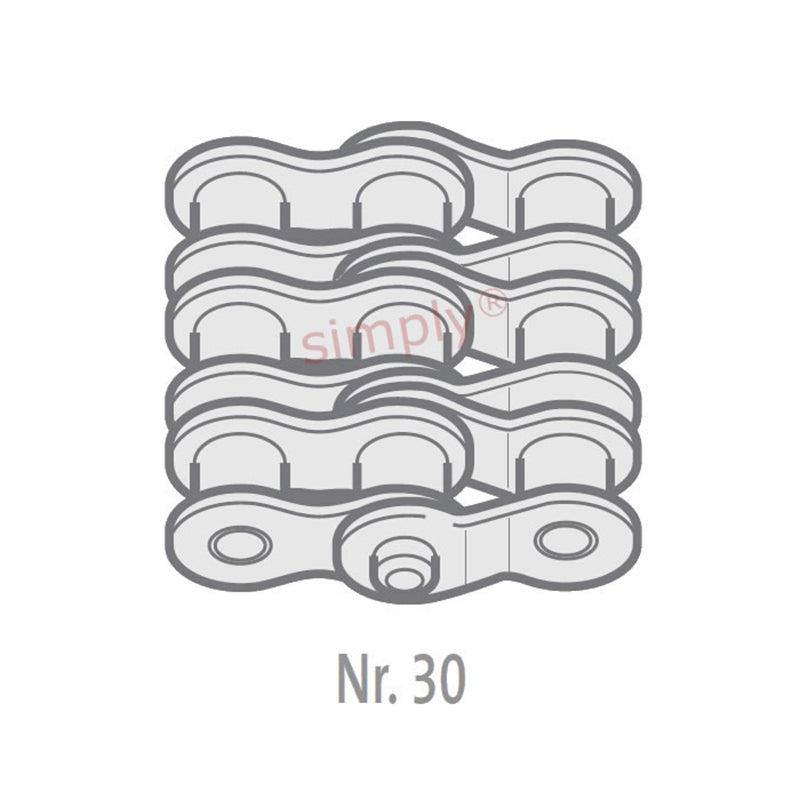

Branded DOL / No. 30 European (BS) Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.05mm |
| Plate Width Inner max (E) | = | 4mm |
| Plate Width Outer max (F) | = | 3.2mm |
| Pin Diameter max (G) | = | 8.28mm |
| Pin Length max (H3) | = | 103.2mm |
| Connecting Link Extension max (J) | = | 3.60000000000001mm |
| ISO606 Tensile Strength min | = | 173000 N |
| Weight | = | 0.113kg/m |
