SKU: 16B-2-SD-NO12-RENOLD
Renold SD 16B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 1 inch Pitch
- Regular price
- €20,89 ex VAT
- Sale price
- €20,89
- Regular price
-
In stock
Quantity Price Breaks
2
€18,59
5
€17,55
10
€17,34
29
€17,13
49
€16,92
75
€16,71
100
€15,67
200
€15,46
250
€15,25
500
€15,04
1000
€14,62
SKU:
16B-2-SD-NO12-RENOLD
Renold SD 16B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 1 inch Pitch
- Regular price
- €20,89 ex VAT
- Sale price
- €20,89
- Regular price
-
Description

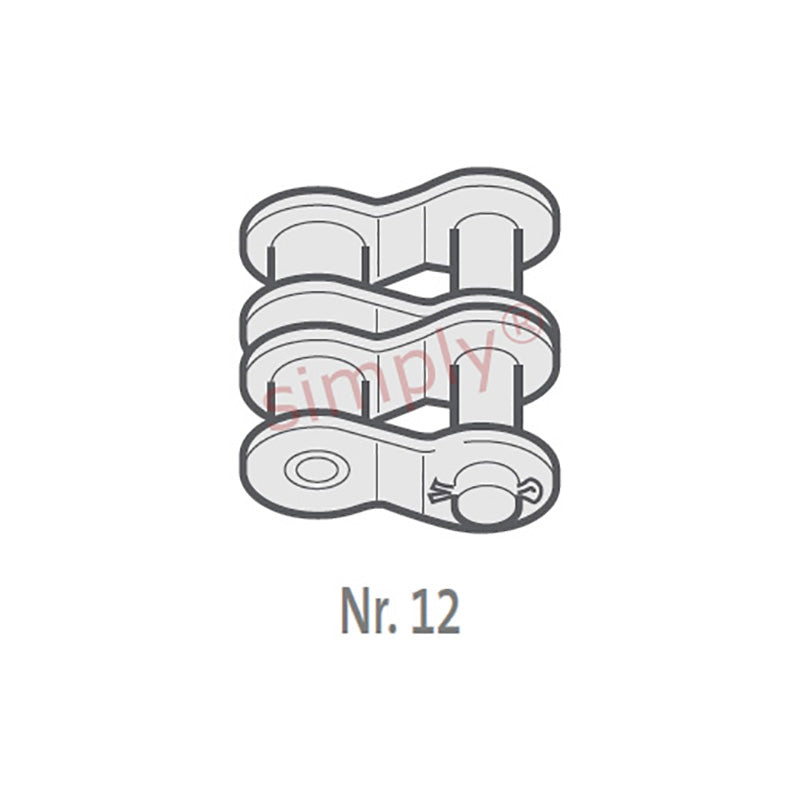

| Renold No. 12 European (BS) Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.05mm |
| Plate Width Inner max (E) | = | 4mm |
| Plate Width Outer max (F) | = | 3.2mm |
| Pin Diameter max (G) | = | 8.2mm |
| Pin Length max (H2) | = | 67.5mm |
| Connecting Link Extension max (J) | = | 1.59999999999999mm |
| Transverse Pitch nom (K) | = | 31.88mm |
| ISO606 Tensile Strength min | = | 106000 N |
| Weight | = | 0.046kg/m |
