SKU: 16B-2-BB-NO11-RENOLD

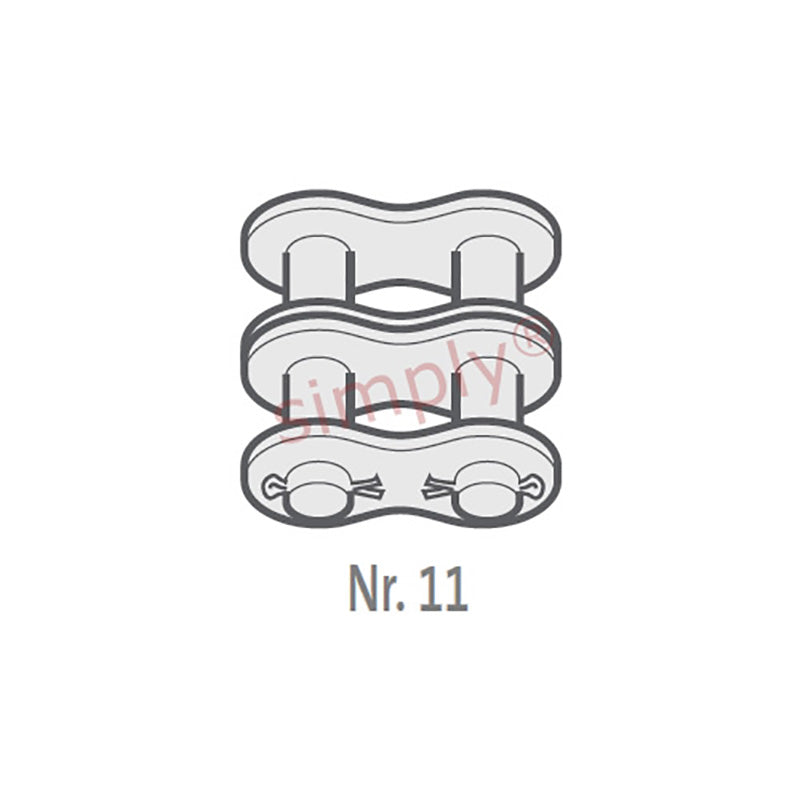

Renold Blue Box 16B-2-NO11 BS Duplex Chain Cottered Connecting Link 1 inch Pitch
- Regular price
- €25,66 ex VAT
- Sale price
- €25,66
- Regular price
-
In stock
Quantity Price Breaks
2
€22,84
5
€21,55
10
€21,30
29
€21,04
49
€20,78
75
€20,53
100
€19,25
200
€18,99
250
€18,73
500
€18,48
1000
€17,96
SKU:
16B-2-BB-NO11-RENOLD
Renold Blue Box 16B-2-NO11 BS Duplex Chain Cottered Connecting Link 1 inch Pitch
- Regular price
- €25,66 ex VAT
- Sale price
- €25,66
- Regular price
-
Description
| Renold No. 11 European (BS) Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.08mm |
| Plate Width Inner max (E) | = | 3.76mm |
| Plate Width Outer max (F) | = | 3.1mm |
| Pin Diameter max (G) | = | 8.28mm |
| Pin Length max (H1) | = | 66.8mm |
| Connecting Link Extension max (J) | = | 2.2mm |
| ISO606 Tensile Strength min | = | 106000 N |
| Weight | = | 0.046kg/m |
