SKU: 16B-1-SNX-NO30-RENOLD

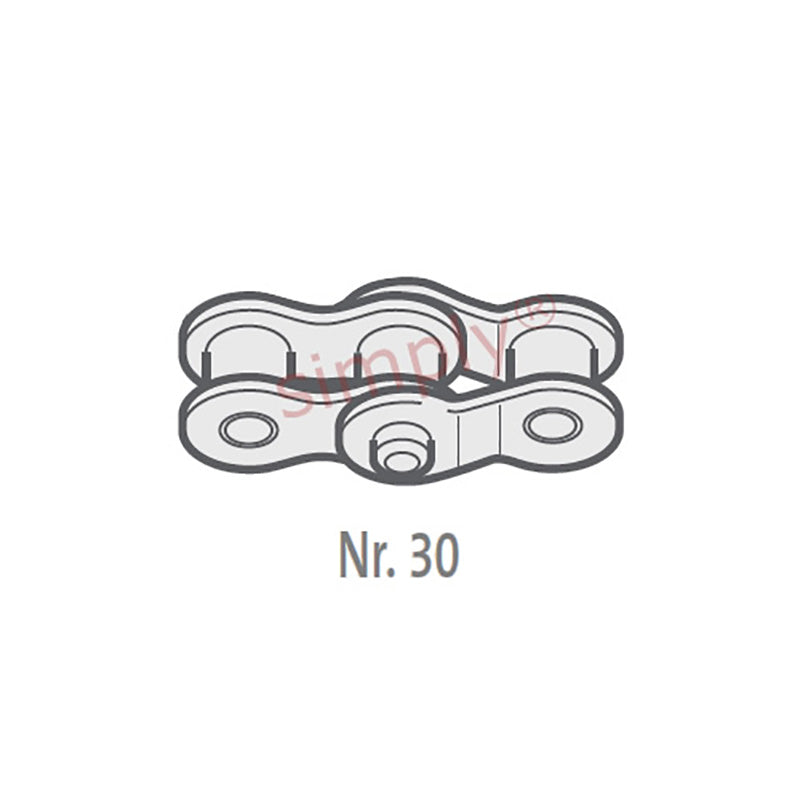

Renold SYNO 16B-1-NO30 BS Simplex Chain Double Cranked Link 1 inch Pitch
- Regular price
- €77,45 ex VAT
- Sale price
- €77,45
- Regular price
-
Not in stock
Quantity Price Breaks
2
€68,93
5
€65,06
10
€64,28
29
€63,51
49
€62,73
75
€61,96
100
€58,09
200
€57,31
250
€56,54
500
€55,76
1000
€54,22
SKU:
16B-1-SNX-NO30-RENOLD
Renold SYNO 16B-1-NO30 BS Simplex Chain Double Cranked Link 1 inch Pitch
- Regular price
- €77,45 ex VAT
- Sale price
- €77,45
- Regular price
-
Description
| Renold No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.08mm |
| Plate Width Inner max (E) | = | 4.12mm |
| Plate Width Outer max (F) | = | 3.1mm |
| Pin Diameter max (G) | = | 8.28mm |
| Pin Length max (H1) | = | 34.9mm |
| Connecting Link Extension max (J) | = | 2.2mm |
| ISO606 Tensile Strength min | = | 60000 N |
| Weight | = | 0.067kg/m |
