SKU: 16B-1-SNX-NO26-RENOLD
Renold SYNO 16B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 1 inch Pitch
- Regular price
- €42,39 ex VAT
- Sale price
- €42,39
- Regular price
-
Not in stock
Quantity Price Breaks
2
€37,73
5
€35,61
10
€35,18
29
€34,76
49
€34,34
75
€33,91
100
€31,79
200
€31,37
250
€30,94
500
€30,52
1000
€29,67
SKU:
16B-1-SNX-NO26-RENOLD
Renold SYNO 16B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 1 inch Pitch
- Regular price
- €42,39 ex VAT
- Sale price
- €42,39
- Regular price
-
Description

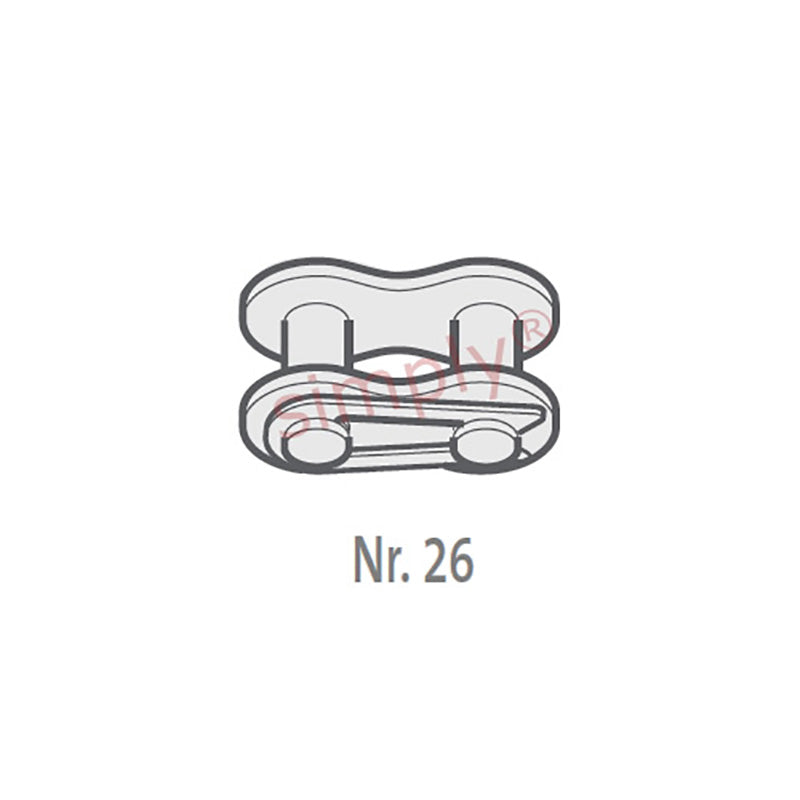

| Renold No. 26 European (BS) Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.08mm |
| Plate Width Inner max (E) | = | 4.12mm |
| Plate Width Outer max (F) | = | 3.1mm |
| Pin Diameter max (G) | = | 8.28mm |
| Pin Length max (H1) | = | 34.9mm |
| Connecting Link Extension max (J) | = | 2.2mm |
| ISO606 Tensile Strength min | = | 60000 N |
| Weight | = | 0.067kg/m |
