SKU: 16B-1-BB-NO11-RENOLD
Renold Blue Box 16B-1-NO11 BS Simplex Cottered Connecting Link 1 inch Pitch
- Regular price
- €15,23 ex VAT
- Sale price
- €15,23
- Regular price
-
In stock
Quantity Price Breaks
2
€13,55
5
€12,79
10
€12,64
29
€12,49
49
€12,34
75
€12,18
100
€11,42
200
€11,27
250
€11,12
500
€10,97
1000
€10,66
SKU:
16B-1-BB-NO11-RENOLD
Renold Blue Box 16B-1-NO11 BS Simplex Cottered Connecting Link 1 inch Pitch
- Regular price
- €15,23 ex VAT
- Sale price
- €15,23
- Regular price
-
Description

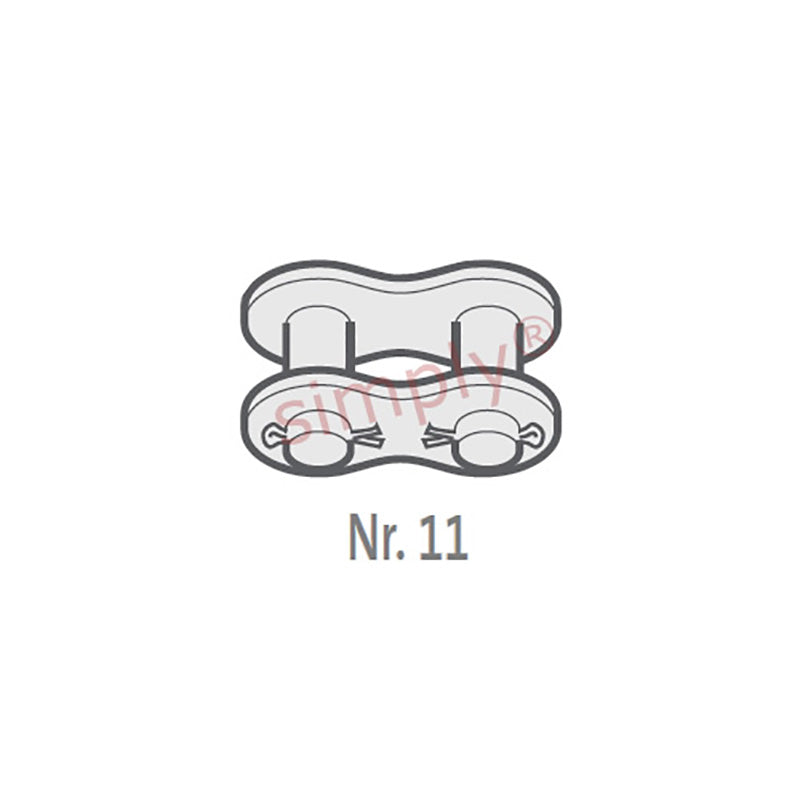

| Renold No. 11 European (BS) Simplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.08mm |
| Plate Width Inner max (E) | = | 4.12mm |
| Plate Width Outer max (F) | = | 3.1mm |
| Pin Diameter max (G) | = | 8.28mm |
| Pin Length max (H1) | = | 34.9mm |
| Connecting Link Extension max (J) | = | 2.2mm |
| ISO606 Tensile Strength min | = | 60000 N |
| Weight | = | 0.06kg/m |
