SKU: 160XL-075-80
160XL075 Major Brand Synchronous Toothed Belt 0.75 inch Wide 16 inch Length 80 Teeth
160XL075 Major Brand Synchronous Toothed Belt 0.75 inch Wide 16 inch Length 80 Teeth
Regular price
€7,52
ex VAT
Regular price
Sale price
€7,52
ex VAT
In stock
Price Break
3+
€5,71
5+
€5,39
10+
€5,32
15+
€5,26
20+
€5,20
30+
€5,13
40+
€4,81
50+
€4,75
60+
€4,68
75+
€4,62
100+
€4,49
Quantity
Couldn't load pickup availability
Description
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
- Brand / Quality:
- Major Brand - High Quality
- Belt Width Approx:
- 19.05mm = 3/4 inch
- Belt Depth Approx:
- 2.3mm
- Belt Length Approx:
- 406.4mm = 16 inch
- Number of Teeth:
- 80
Technical
Technical
| Belt width | 0.75 inch = 19.05mm |
|---|---|
| Pitch length | 16 inch = 406.4mm |
| Number of teeth | 80 |

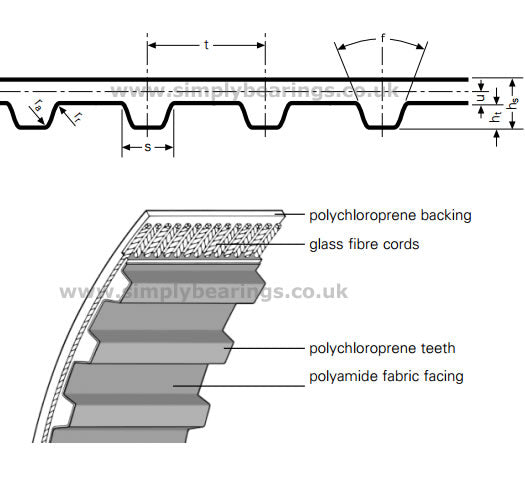

| Tooth pitch t | 0.2 inch |
| Flank angle f | 50 degrees |
| Tooth height h<sub>t</sub> | 0.05 inch |
| Pitch zone u | 0.01 inch |
