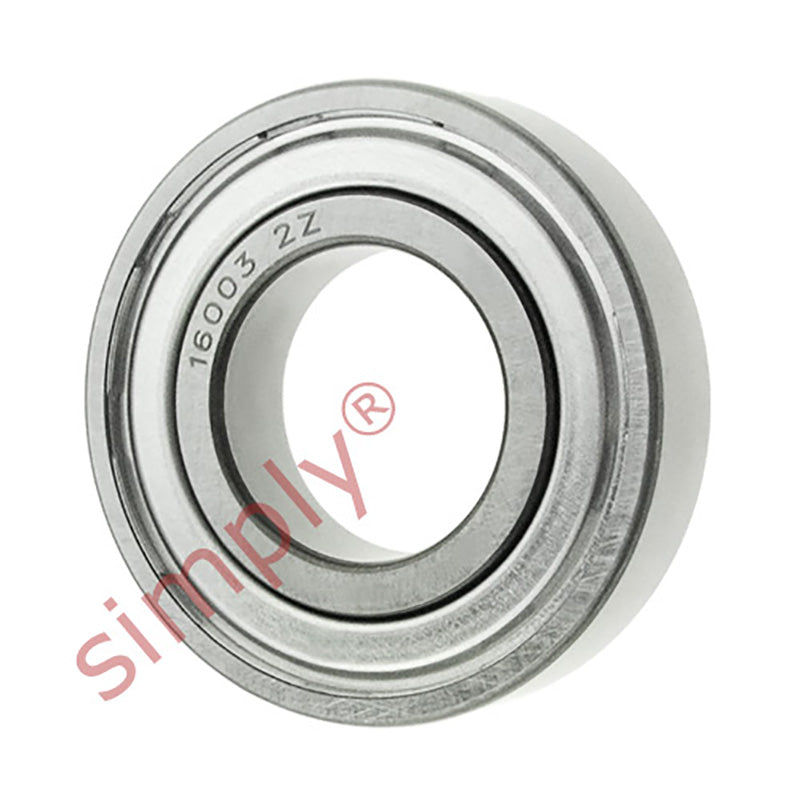

FAG 160032Z Metal Shielded Deep Groove Ball Bearing 17x35x8mm

SKU: 16003-2Z-FAG

FAG 160032Z Metal Shielded Deep Groove Ball Bearing 17x35x8mm

€10,15 ex VAT
€10,15
ex VAT
Equivalent to: 16003ZZE 16003ZZ 16003.2Z 16003KDD 16003DD 16003FF 160032ZR
In stock

Quantity Price Breaks

10 €9,03
19 €8,53
29 €8,42
39 €8,32
49 €8,22
74 €8,12
99 €7,61
199 €7,51
249 €7,41
499 €7,31
999 €7,11
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
FAG 160032Z Metal Shielded Deep Groove Ball Bearing 17x35x8mm
SKU: 16003-2Z-FAG

FAG 160032Z Metal Shielded Deep Groove Ball Bearing 17x35x8mm

€10,15 ex VAT
€10,15
ex VAT

Description

Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that only require 1 shield
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life,

Technical

d = 17mm
D = 35mm
B = 8mm
Dynamic load C = 6.37 kN
Static load Co = 3.25 kN
Fatigue load limit Pu = 0.137 kN
Reference speed = 45000 rpm
Limiting speed = 22000 rpm
Mass = 0.032 kg
d1 = 22.7mm
D2 = 31.2mm
r1r2 min = 0.3mm
da min = 19
