SKU: 160-2-BB-NO12-RENOLD
Renold Blue Box 160-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 2 inch Pitch
- Regular price
- €666,71 ex VAT
- Sale price
- €666,71
- Regular price
-
Not in stock
Quantity Price Breaks
2
€593,37
5
€560,04
10
€553,37
29
€546,70
49
€540,04
75
€533,37
100
€500,03
200
€493,37
250
€486,70
500
€480,03
1000
€466,70
SKU:
160-2-BB-NO12-RENOLD
Renold Blue Box 160-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 2 inch Pitch
- Regular price
- €666,71 ex VAT
- Sale price
- €666,71
- Regular price
-
Description

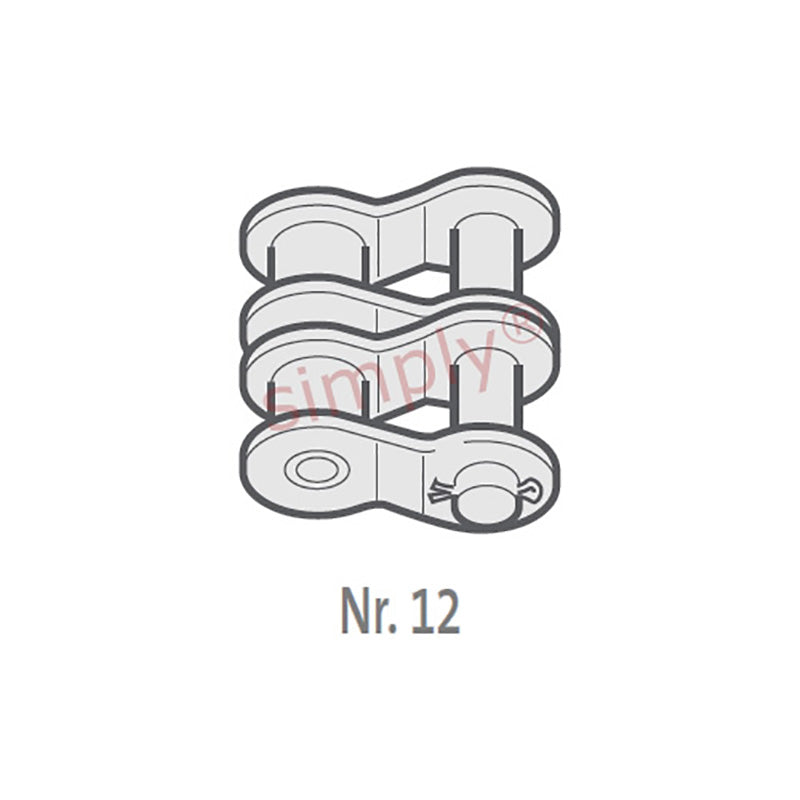

| Renold No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 2 inch |
| Pitch (A) | = | 50.8mm |
| Inside Width min (B) | = | 31.55mm |
| Roller Diameter max (C) | = | 28.58mm |
| Plate Height max (D) | = | 48.26mm |
| Plate Width Inner max (E) | = | 6.35mm |
| Plate Width Outer max (F) | = | 6.35mm |
| Pin Diameter max (G) | = | 14.29mm |
| Pin Length max (H2) | = | 121.6mm |
| Connecting Link Extension max (J) | = | 6.5mm |
| Transverse Pitch nom (K) | = | 58.55mm |
| ISO606 Tensile Strength min | = | 446000 N |
| Weight | = | 0.87kg/m |
