SKU: 140-3-BB-NO58-RENOLD

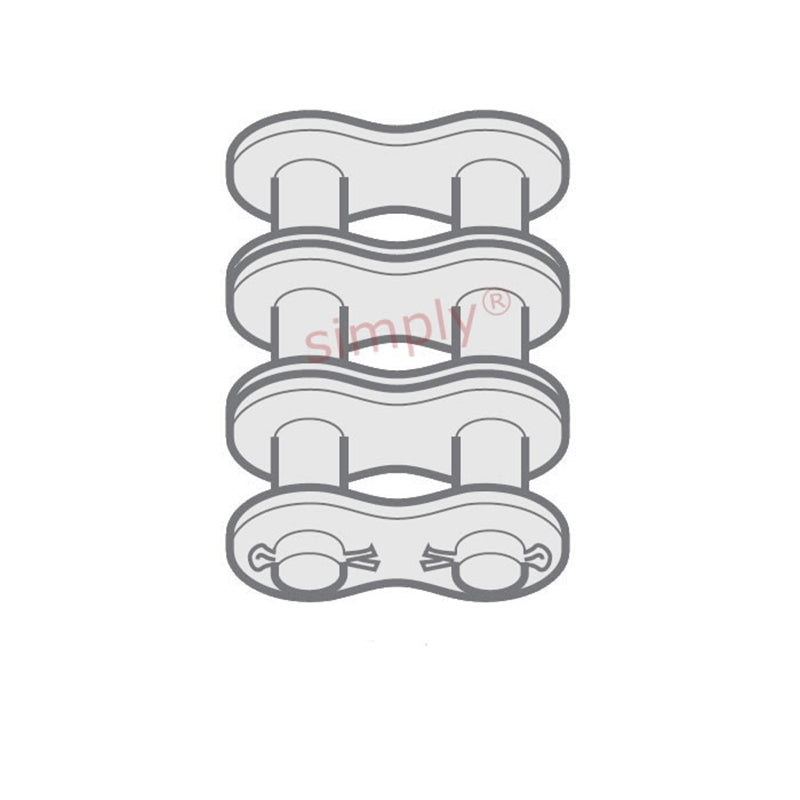

Renold Blue Box 140-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1-3/4 inch Pitch
- Regular price
- €219,53 ex VAT
- Sale price
- €219,53
- Regular price
-
Not in stock
Quantity Price Breaks
2
€195,38
5
€184,41
10
€182,21
29
€180,01
49
€177,82
75
€175,62
100
€164,65
200
€162,45
250
€160,26
500
€158,06
1000
€153,67
SKU:
140-3-BB-NO58-RENOLD
Renold Blue Box 140-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1-3/4 inch Pitch
- Regular price
- €219,53 ex VAT
- Sale price
- €219,53
- Regular price
-
Description
| Renold No. 58 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1.75 inch |
| Pitch (A) | = | 44.45mm |
| Inside Width min (B) | = | 25.23mm |
| Roller Diameter max (C) | = | 25.4mm |
| Plate Height max (D) | = | 42.23mm |
| Plate Width Inner max (E) | = | 5.61mm |
| Plate Width Outer max (F) | = | 5.61mm |
| Pin Diameter max (G) | = | 12.71mm |
| Pin Length max (H2) | = | 150.7mm |
| Connecting Link Extension max (J) | = | 5.2mm |
| Transverse Pitch nom (K) | = | 48.87mm |
| ISO606 Tensile Strength min | = | 510000 N |
| Weight | = | 1.167kg/m |
