SKU: 140-3-BB-NO11-RENOLD
Renold Blue Box 140-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1-3/4 inch Pitch
- Regular price
- €223,98 ex VAT
- Sale price
- €223,98
- Regular price
-
Not in stock
Quantity Price Breaks
2
€199,34
5
€188,14
10
€185,90
29
€183,66
49
€181,42
75
€179,18
100
€167,99
200
€165,75
250
€163,51
500
€161,27
1000
€156,79
SKU:
140-3-BB-NO11-RENOLD
Renold Blue Box 140-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 1-3/4 inch Pitch
- Regular price
- €223,98 ex VAT
- Sale price
- €223,98
- Regular price
-
Description

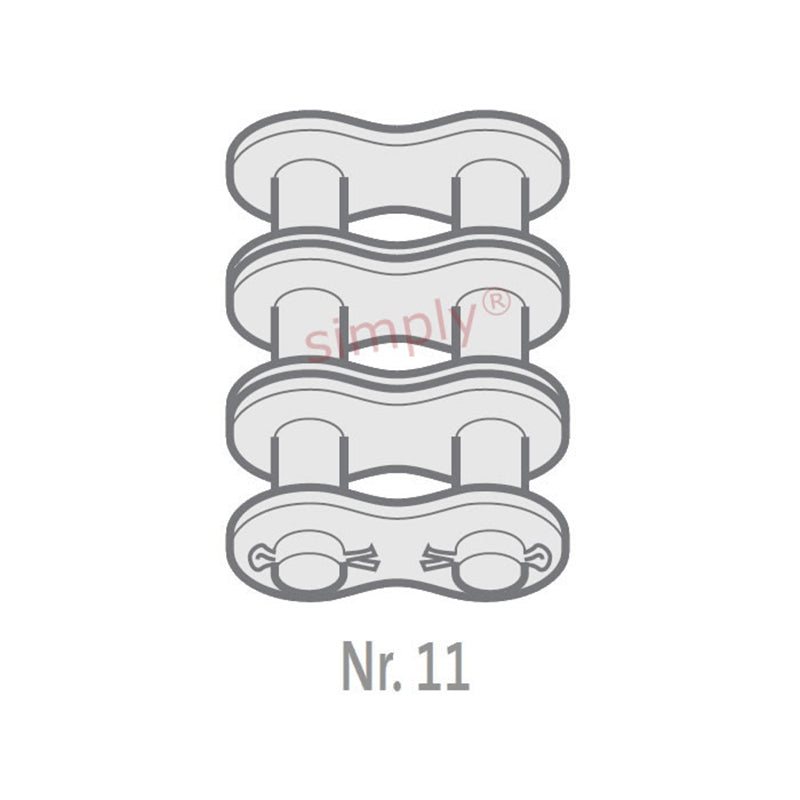

| Renold No. 11 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1.75 inch |
| Pitch (A) | = | 44.45mm |
| Inside Width min (B) | = | 25.23mm |
| Roller Diameter max (C) | = | 25.4mm |
| Plate Height max (D) | = | 42.23mm |
| Plate Width Inner max (E) | = | 5.61mm |
| Plate Width Outer max (F) | = | 5.61mm |
| Pin Diameter max (G) | = | 12.71mm |
| Pin Length max (H2) | = | 150.7mm |
| Connecting Link Extension max (J) | = | 5.2mm |
| Transverse Pitch nom (K) | = | 48.87mm |
| ISO606 Tensile Strength min | = | 510000 N |
| Weight | = | 1.167kg/m |
