SKU: 12B-3-BB-NO12-RENOLD
Renold Blue Box 12B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 3/4 inch Pitch
- Regular price
- €28,23 ex VAT
- Sale price
- €28,23
- Regular price
-
Not in stock
Quantity Price Breaks
2
€25,12
5
€23,71
10
€23,43
29
€23,15
49
€22,87
75
€22,58
100
€21,17
200
€20,89
250
€20,61
500
€20,33
1000
€19,76
SKU:
12B-3-BB-NO12-RENOLD
Renold Blue Box 12B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 3/4 inch Pitch
- Regular price
- €28,23 ex VAT
- Sale price
- €28,23
- Regular price
-
Description

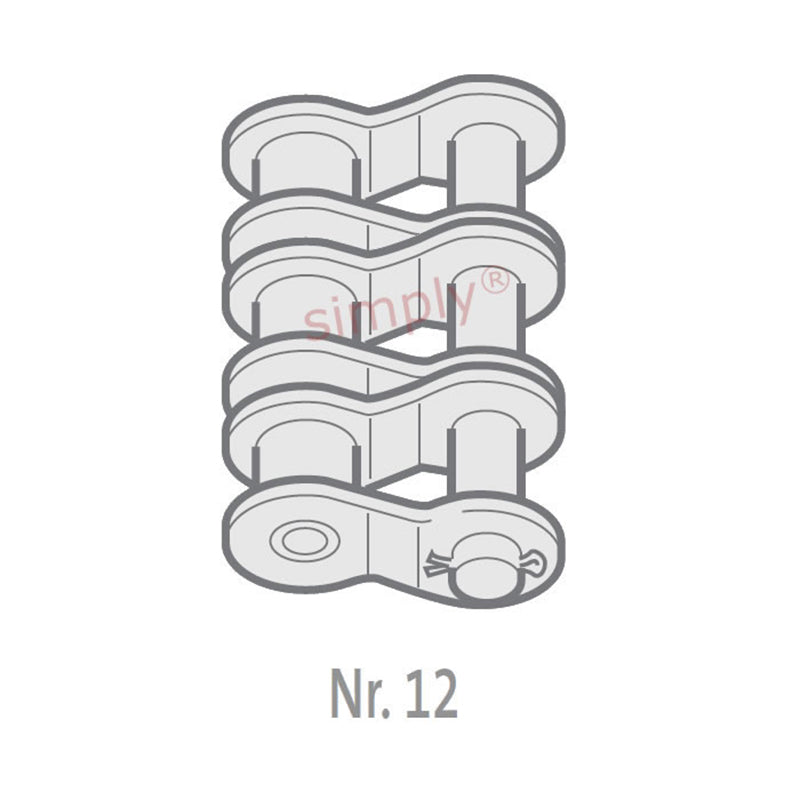

| Renold No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 11.68mm |
| Roller Diameter max (C) | = | 12.07mm |
| Plate Height max (D) | = | 16mm |
| Plate Width Inner max (E) | = | 1.81mm |
| Plate Width Outer max (F) | = | 1.81mm |
| Pin Diameter max (G) | = | 5.72mm |
| Pin Length max (H2) | = | 60.9mm |
| Connecting Link Extension max (J) | = | 2.6mm |
| Transverse Pitch nom (K) | = | 19.46mm |
| ISO606 Tensile Strength min | = | 86700 N |
| Weight | = | 0.015kg/m |
