SKU: 11590/11520-CDX

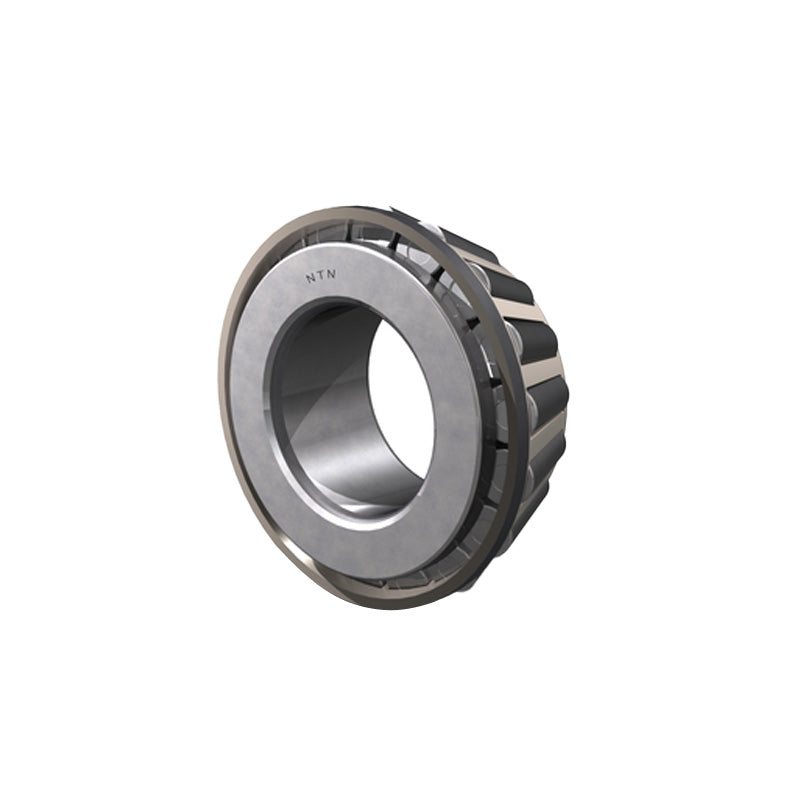

Codex 11590/11520 Imperial Taper Roller Bearing 0.625x1.6875x0.5625 inch
- Regular price
- €26,42 ex VAT
- Sale price
- €26,42
- Regular price
-
In stock
Quantity Price Breaks
10
€23,51
19
€22,19
29
€21,93
39
€21,66
49
€21,40
74
€21,14
99
€19,82
199
€19,55
249
€19,29
499
€19,02
999
€18,49
SKU:
11590/11520-CDX
Codex 11590/11520 Imperial Taper Roller Bearing 0.625x1.6875x0.5625 inch
- Regular price
- €26,42 ex VAT
- Sale price
- €26,42
- Regular price
-
Description
|
Codex Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
Technical
| d | = | 0.625 inch |
| D | = | 1.6875 inch |
| T | = | 0.5625 inch |
| Dynamic load | = | 17.6 kN |
| Static load | = | 17.6 kN |
| Fatigue load limit Pu | = | 1.83 |
| Reference speed | = | 12000 rpm |
| Limiting speed | = | 17000 rpm |
| Weight | = | 0.1 kg |
| d1 | = | 31.1mm |
| B | = | 14.288mm |
| C | = | 9.525mm |
| r1r2 min | = | 1.5mm |
| r3r4 min | = | 1.5mm |
| a | = | 13mm |
| da max | = | 23mm |
| db min | = | 23mm |
| Da min | = | 32mm |
| Da max | = | 36mm |
| Db min | = | 38mm |
| Ca min | = | 2mm |
| Cb min | = | 4.5mm |
| ra max | = | 1.5mm |
| rb max | = | 1.5mm |
| e | = | 0.72 |
| Y | = | 0.84 |
| Y0 | = | 0.45 |
