SKU: 1145-40-RHP

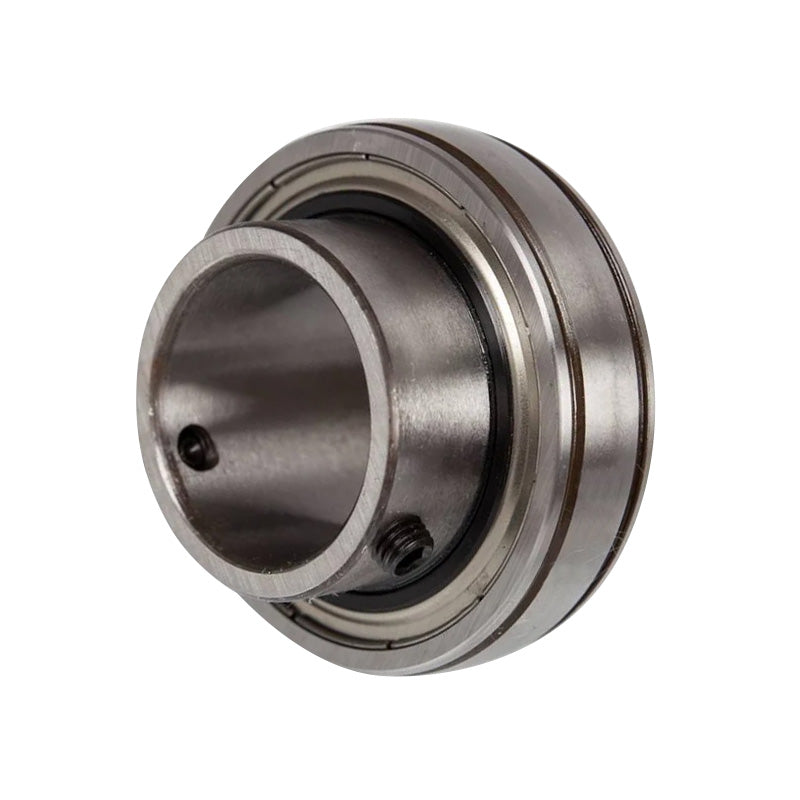

RHP 1145-40 Parallel Outer Full Width Bearing Insert 40mm Bore 85mm Outside Diameter

Name: RHP 1145-40 Parallel Outer Full Width Bearing Insert 40mm Bore 85mm Outside Diameter
Brand: RHP
SKU: 1145-40-RHP
Price: 51.58 EUR
Availability: InStock

€51,58 ex VAT

Sale Sold out

In stock

Price Break

10+ €39,20

20+ €36,99

30+ €36,55

40+ €36,11

50+ €35,67

75+ €35,23

100+ €33,03

200+ €32,59

250+ €32,15

500+ €31,71

1000+ €30,83

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

RHP 1100 Series: Full width bearing insert with parallel outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, grub screw fixing

Brand / Quality:: RHP - High Quality
Inside Diameter:: 40mm
Outside Diameter:: 85mm
Style:: 1145

Technical

Bore	40mm
D	85mm
C	19mm
B	49.23mm
s	19.1mm
d1	57.3mm
M	7.95mm
r	1mm
Dynamic load Cr	32500 N
Static load Cor	20500 N
Rec max speed	3700 rpm
Weight	0.73 kg
