SKU: 1135-1.3/8-RHP
RHP 1135-1-3/8 Parallel Outer Full Width Bearing Insert 1-3/8 inch Bore 72mm Outside Diameter
RHP 1135-1-3/8 Parallel Outer Full Width Bearing Insert 1-3/8 inch Bore 72mm Outside Diameter
Regular price
€41,04
ex VAT
Regular price
Sale price
€41,04
ex VAT
In stock
Price Break
10+
€31,19
20+
€29,44
30+
€29,09
40+
€28,74
50+
€28,39
75+
€28,04
100+
€26,28
200+
€25,93
250+
€25,58
500+
€25,23
1000+
€24,53
Quantity
Couldn't load pickup availability
Description
Description
|
RHP 1100 Series: Full width bearing insert with parallel outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 72mm
- Style:
- 1135

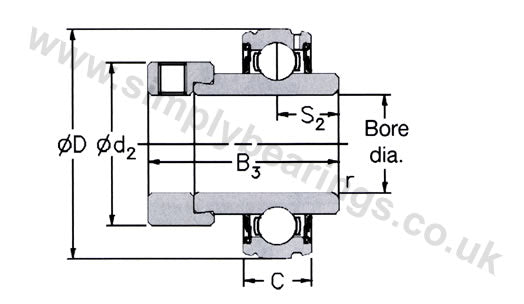

Technical
Technical
| Bore | 1-3/8 inch |
|---|---|
| D | 2.8346 inch |
| C | 0.669 inch |
| B | 1.688 inch |
| s | 0.69 inch |
| d1 | 1.838 inch |
| M | 0.289 inch |
| r | 0.039 inch |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 0.51 kg |
