SKU: 10B-3-BB-NO12-RENOLD
Renold Blue Box 10B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 5/8 inch Pitch
- Regular price
- €25,66 ex VAT
- Sale price
- €25,66
- Regular price
-
In stock
Quantity Price Breaks
2
€22,84
5
€21,55
10
€21,30
29
€21,04
49
€20,78
75
€20,53
100
€19,25
200
€18,99
250
€18,73
500
€18,48
1000
€17,96
SKU:
10B-3-BB-NO12-RENOLD
Renold Blue Box 10B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 5/8 inch Pitch
- Regular price
- €25,66 ex VAT
- Sale price
- €25,66
- Regular price
-
Description

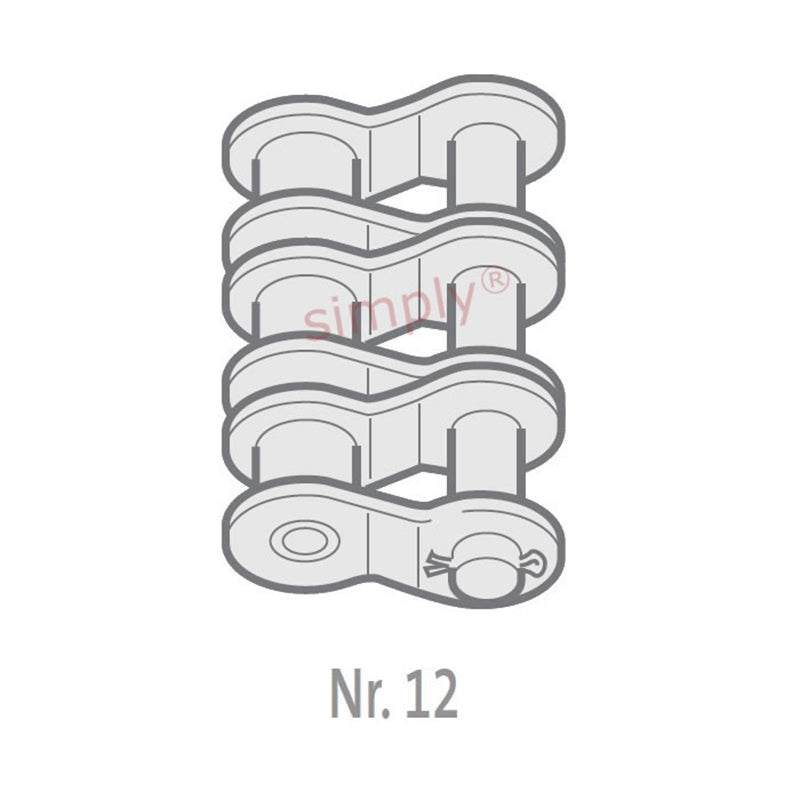

| Renold No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.65mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H2) | = | 52mm |
| Connecting Link Extension max (J) | = | 2.5mm |
| Transverse Pitch nom (K) | = | 16.59mm |
| ISO606 Tensile Strength min | = | 66700 N |
| Weight | = | 0.009kg/m |
