SKU: 10B-2-SNX-NO30-RENOLD

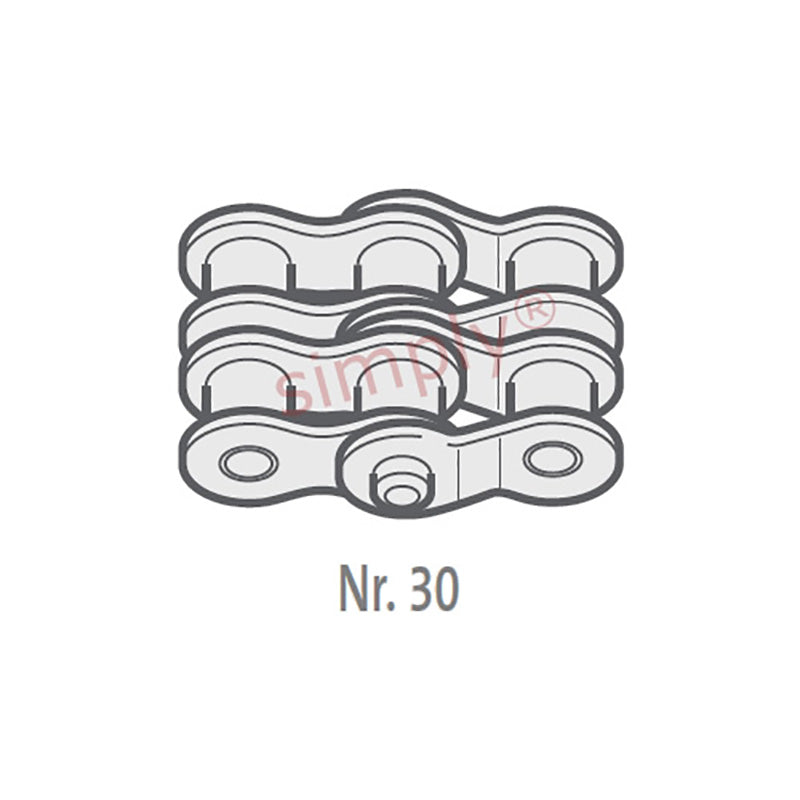

Renold SYNO 10B-2-NO30 BS Duplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- €54,66 ex VAT
- Sale price
- €54,66
- Regular price
-
Not in stock
Quantity Price Breaks
2
€48,65
5
€45,91
10
€45,37
29
€44,82
49
€44,27
75
€43,73
100
€41,00
200
€40,45
250
€39,90
500
€39,36
1000
€38,26
SKU:
10B-2-SNX-NO30-RENOLD
Renold SYNO 10B-2-NO30 BS Duplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- €54,66 ex VAT
- Sale price
- €54,66
- Regular price
-
Description
| Renold No. 30 European (BS) Duplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.65mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H2) | = | 35.4mm |
| Connecting Link Extension max (J) | = | 2.5mm |
| Transverse Pitch nom (K) | = | mm |
| ISO606 Tensile Strength min | = | 44500 N |
| Weight | = | 0.009kg/m |
