SKU: 10B-2-NO30-MB
Branded 10B-2-NO30 BS Duplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- €7,24 ex VAT
- Sale price
- €7,24
- Regular price
-
In stock
Quantity Price Breaks
2
€6,44
5
€6,08
10
€6,01
29
€5,94
49
€5,86
75
€5,79
100
€5,43
200
€5,36
250
€5,29
500
€5,21
1000
€5,07
SKU:
10B-2-NO30-MB
Branded 10B-2-NO30 BS Duplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- €7,24 ex VAT
- Sale price
- €7,24
- Regular price
-
Description

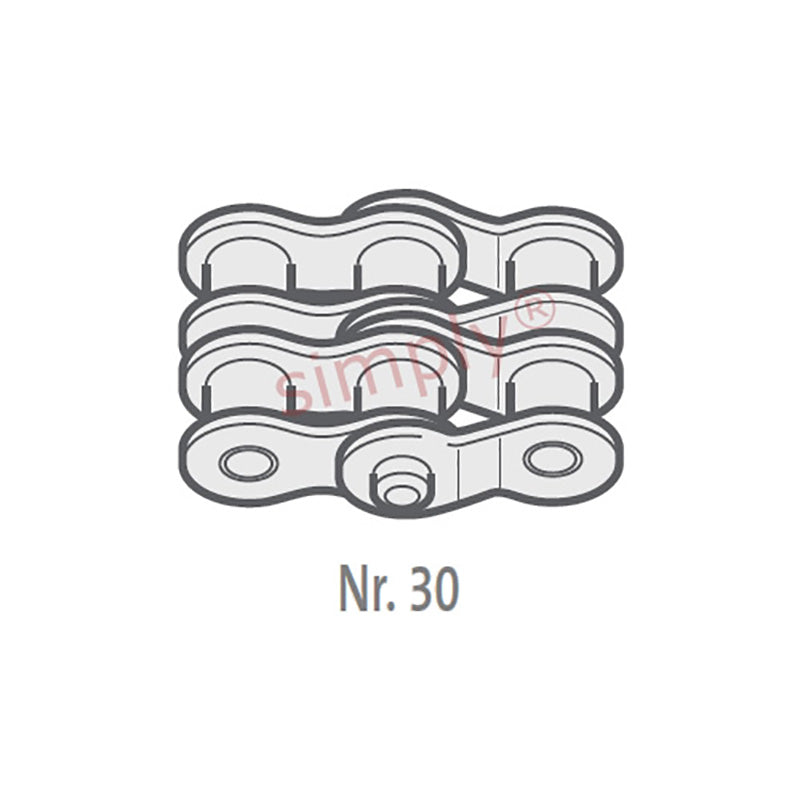

Branded DOL / No. 30 European (BS) Duplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.65mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.7mm |
| Plate Width Inner max (E) | = | 1.65mm |
| Plate Width Outer max (F) | = | 1.65mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H2) | = | 36.2mm |
| Connecting Link Extension max (J) | = | 1.3mm |
| Transverse Pitch nom (K) | = | 16.59mm |
| ISO606 Tensile Strength min | = | 44500 N |
| Weight | = | 0.009kg/m |
