SKU: 10B-2-BB-NO11-RENOLD
Renold Blue Box 10B-2-NO11 BS Duplex Chain Cottered Connecting Link 5/8 inch Pitch
- Regular price
- €10,00 ex VAT
- Sale price
- €10,00
- Regular price
-
Not in stock
Quantity Price Breaks
2
€8,90
5
€8,40
10
€8,30
29
€8,20
49
€8,10
75
€8,00
100
€7,50
200
€7,40
250
€7,30
500
€7,20
1000
€7,00
SKU:
10B-2-BB-NO11-RENOLD
Renold Blue Box 10B-2-NO11 BS Duplex Chain Cottered Connecting Link 5/8 inch Pitch
- Regular price
- €10,00 ex VAT
- Sale price
- €10,00
- Regular price
-
Description

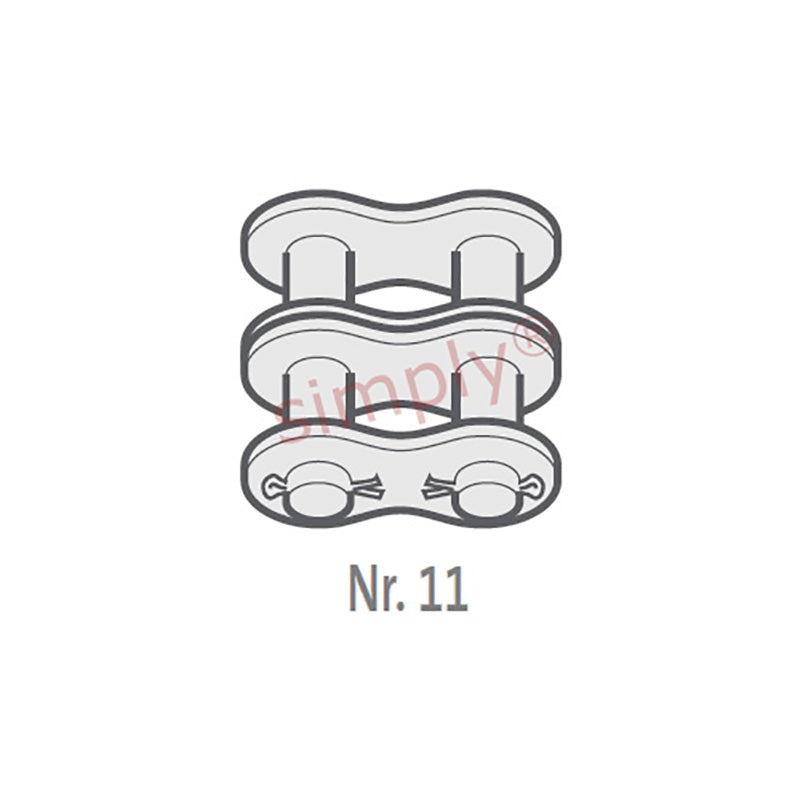

| Renold No. 11 European (BS) Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.65mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H1) | = | 35.4mm |
| Connecting Link Extension max (J) | = | 2.5mm |
| ISO606 Tensile Strength min | = | 44500 N |
| Weight | = | 0.009kg/m |
