SKU: 10B-1-NO30-MB
Branded 10B-1-NO30 BS Simplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- €5,23 ex VAT
- Sale price
- €5,23
- Regular price
-
In stock
Quantity Price Breaks
2
€4,65
5
€4,39
10
€4,34
29
€4,29
49
€4,24
75
€4,18
100
€3,92
200
€3,87
250
€3,82
500
€3,77
1000
€3,66
SKU:
10B-1-NO30-MB
Branded 10B-1-NO30 BS Simplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- €5,23 ex VAT
- Sale price
- €5,23
- Regular price
-
Description

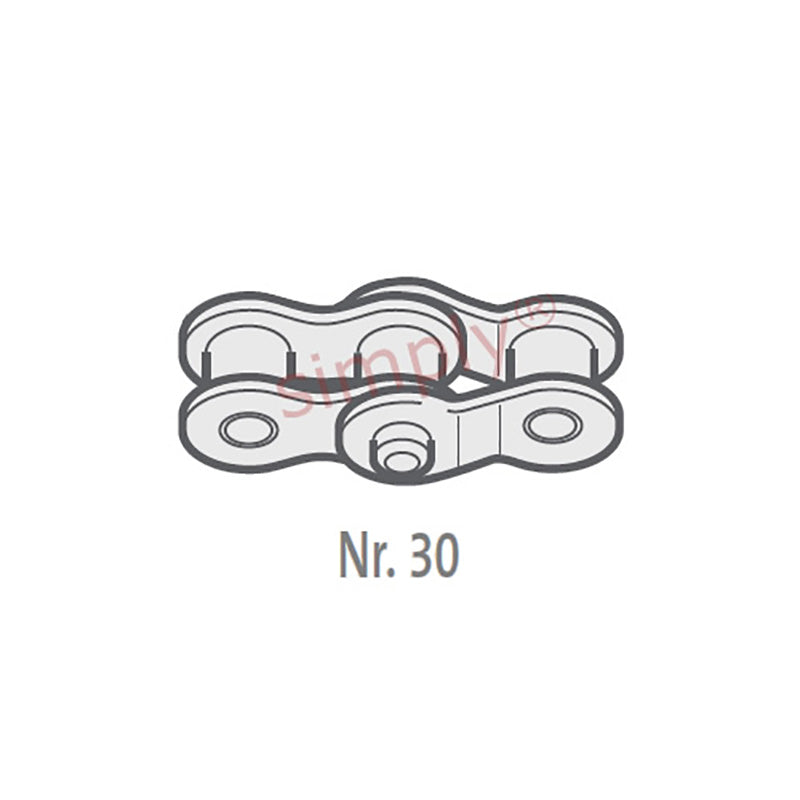

Branded DOL / No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.65mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.7mm |
| Plate Width Inner max (E) | = | 1.65mm |
| Plate Width Outer max (F) | = | 1.65mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H1) | = | 19.6mm |
| Connecting Link Extension max (J) | = | 1.4mm |
| ISO606 Tensile Strength min | = | 22200 N |
| Weight | = | 0.009kg/m |
