SKU: 1065-60G-RHP

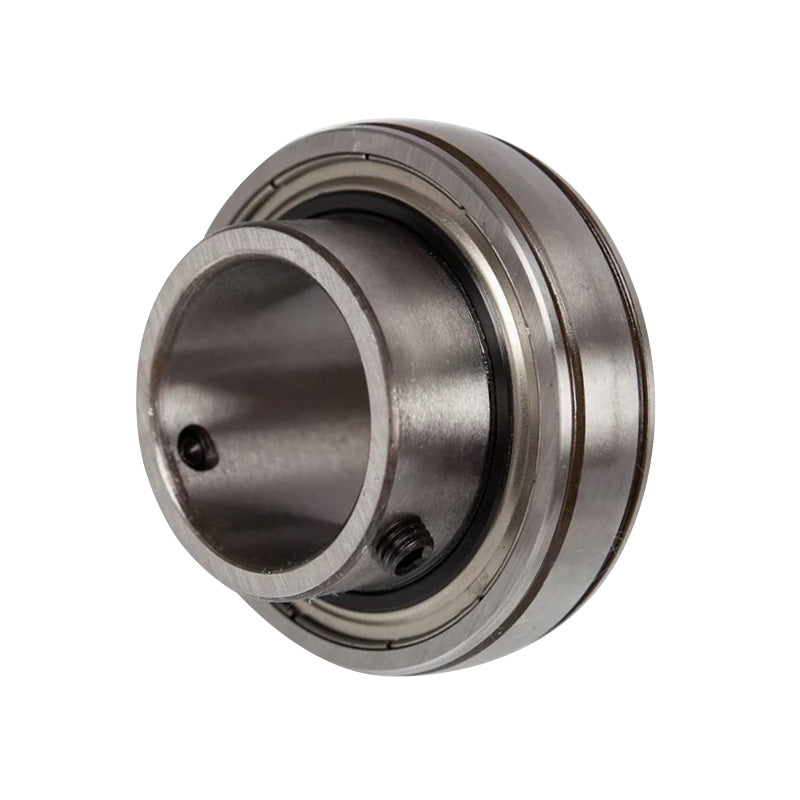

RHP 1065-60G Spherical Outer Full Width Bearing Insert 60mm Bore 120mm Outside Diameter

Name: RHP 1065-60G Spherical Outer Full Width Bearing Insert 60mm Bore 120mm Outside Diameter
Brand: RHP
SKU: 1065-60G-RHP
Price: 163.75 EUR
Availability: InStock

€163,75 ex VAT

Sale Sold out

In stock

Price Break

10+ €124,44

20+ €117,45

30+ €116,05

40+ €114,65

50+ €113,25

75+ €111,86

100+ €104,86

200+ €103,47

250+ €102,07

500+ €100,67

1000+ €97,87

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing

Brand / Quality:: RHP - High Quality
Inside Diameter:: 60mm
Outside Diameter:: 120mm
Style:: 1065

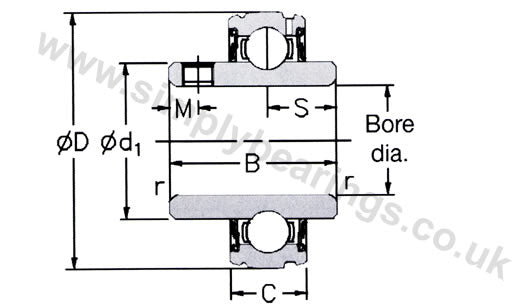

Technical

Bore	60mm
D	120mm
C	23mm
B	65.07mm
s	25.45mm
d1	82.4mm
M	9.55mm
r	1.5mm
Dynamic load Cr	57500 N
Static load Cor	40000 N
Rec max speed	2600 rpm
Weight	2.02 kg
