SKU: 1020-3/4DECG-RHP

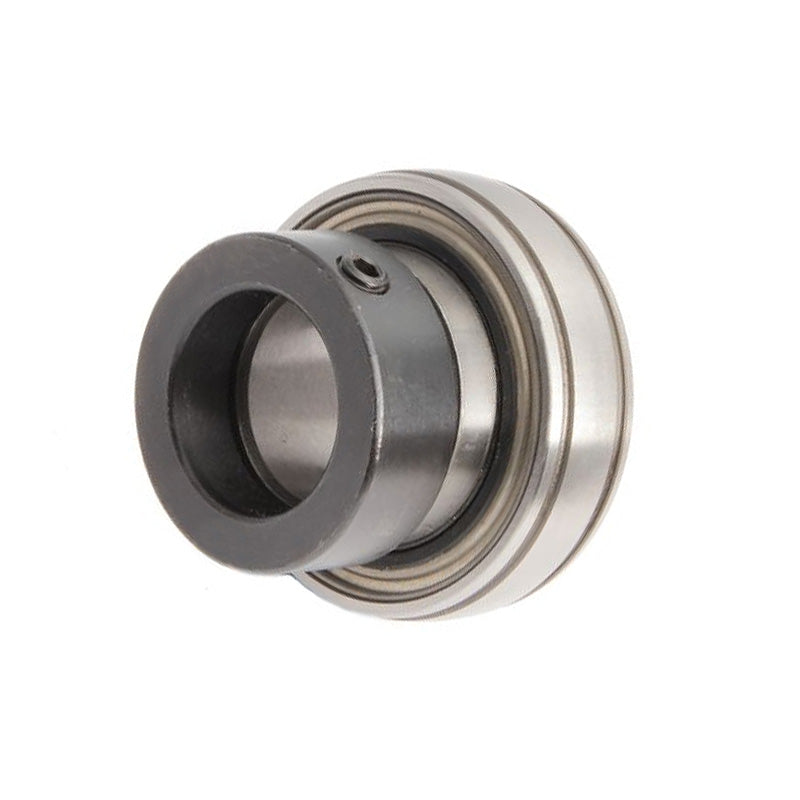

RHP 1020-3/4DECG Spherical Outer Full Width Bearing Insert 3/4 inch Bore 47mm Outside Diameter
- Regular price
- €33,57 ex VAT
- Sale price
- €33,57
- Regular price
-
Not in stock
Quantity Price Breaks
10
€29,88
20
€28,20
30
€27,86
40
€27,53
50
€27,19
75
€26,86
100
€25,18
200
€24,84
250
€24,51
500
€24,17
1000
€23,50
SKU:
1020-3/4DECG-RHP
RHP 1020-3/4DECG Spherical Outer Full Width Bearing Insert 3/4 inch Bore 47mm Outside Diameter
- Regular price
- €33,57 ex VAT
- Sale price
- €33,57
- Regular price
-
Description
|
RHP 1000-DEC-G Series: Full width bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, eccentric collar fixing |
Technical
| Bore | = | 3/4 inch |
| D | = | 1.8504 inch |
| C | = | 0.551 inch |
| B3 | = | 1.717 inch |
| s2 | = | 0.674 inch |
| d2 | = | 1.311 inch |
| r | = | 0.039 inch |
| Dynamic load Cr | = | 12800 N |
| Static load Cor | = | 6650 N |
| Rec max speed | = | 6700 rpm |
| Weight | = | 0.2 kg |
