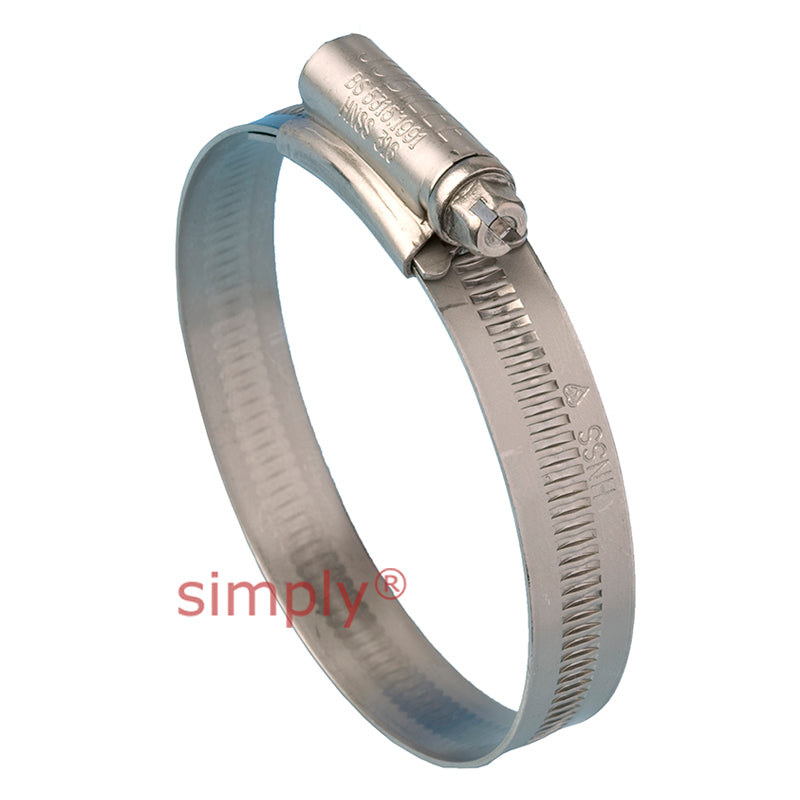

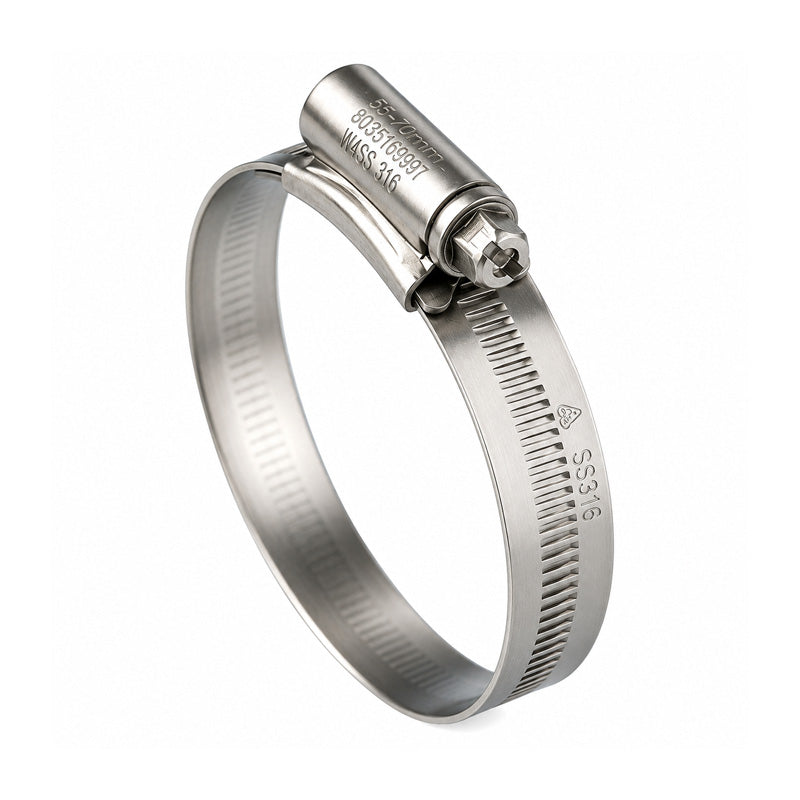

0SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 16mm - 22mm Band Width 13mm

SKU: 0SS316-JUB

0SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 16mm - 22mm Band Width 13mm

€6,11 ex VAT
€6,11
ex VAT
In stock

Quantity Price Breaks

3 €5,44
5 €5,13
9 €5,07
19 €5,01
49 €4,95
74 €4,89
99 €4,58
199 €4,52
249 €4,46
499 €4,40
999 €4,28
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
0SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 16mm - 22mm Band Width 13mm
SKU: 0SS316-JUB

0SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 16mm - 22mm Band Width 13mm

€6,11 ex VAT
€6,11
ex VAT

Description

316 Stainless Steel HNSS Worm Drive Jubilee Clips: The original Jubilee® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery.
Benefits: Rolled edges provide protection to softer hoses.

Technical

BS No. = 22
Adjustment Range = 16mm - 22mm
Adjustment Range = 5/8 - 7/8 inch
Band Width (+/- 0.1) = 13mm
Band Thickness (+/- 0.1) = 0.914mm
Recommended Torque = 4.2Nm
Maximum Torque = 5.6Nm
Maximum Pressure = 203 Psi
