SKU: 08B-3-SD-NO12-RENOLD
Renold SD 08B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1/2 inch Pitch
- Regular price
- €11,57 ex VAT
- Sale price
- €11,57
- Regular price
-
In stock
Quantity Price Breaks
2
€10,30
5
€9,72
10
€9,60
29
€9,49
49
€9,37
75
€9,26
100
€8,68
200
€8,56
250
€8,45
500
€8,33
1000
€8,10
SKU:
08B-3-SD-NO12-RENOLD
Renold SD 08B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1/2 inch Pitch
- Regular price
- €11,57 ex VAT
- Sale price
- €11,57
- Regular price
-
Description

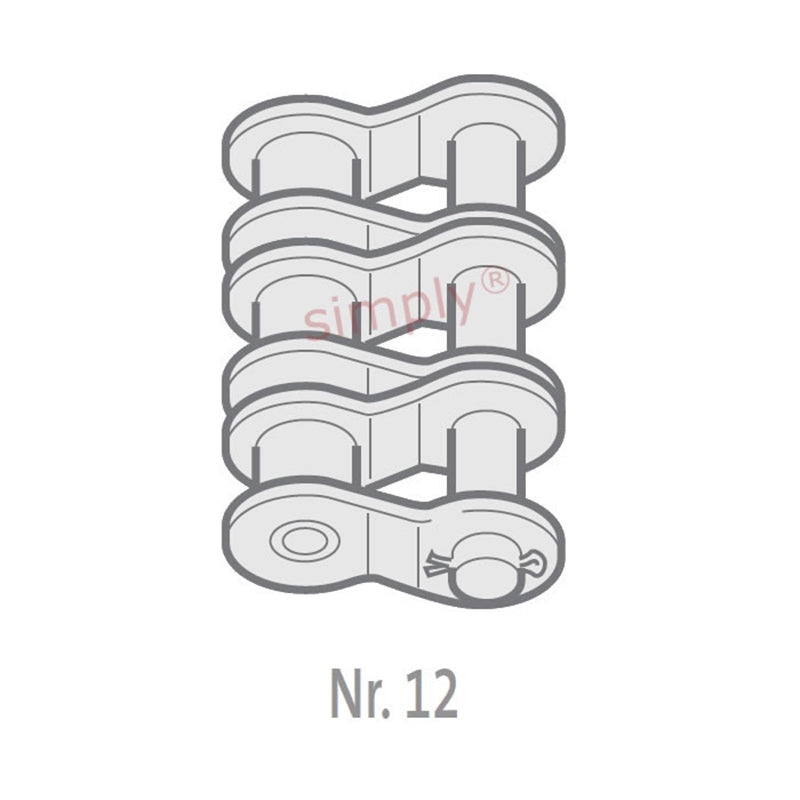

| Renold No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.75mm |
| Roller Diameter max (C) | = | 8.51mm |
| Plate Height max (D) | = | 11.8mm |
| Plate Width Inner max (E) | = | 1.5mm |
| Plate Width Outer max (F) | = | 1.5mm |
| Pin Diameter max (G) | = | 4.45mm |
| Pin Length max (H1) | = | 44.9mm |
| Connecting Link Extension max (J) | = | 3.9mm |
| ISO606 Tensile Strength min | = | 51150 N |
| Weight | = | 0.009kg/m |
