SKU: 08B-3-BB-NO12-RENOLD
Renold Blue Box 08B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1/2 inch Pitch
- Regular price
- €26,56 ex VAT
- Sale price
- €26,56
- Regular price
-
Not in stock
Quantity Price Breaks
2
€23,64
5
€22,31
10
€22,04
29
€21,78
49
€21,51
75
€21,25
100
€19,92
200
€19,65
250
€19,39
500
€19,12
1000
€18,59
SKU:
08B-3-BB-NO12-RENOLD
Renold Blue Box 08B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1/2 inch Pitch
- Regular price
- €26,56 ex VAT
- Sale price
- €26,56
- Regular price
-
Description

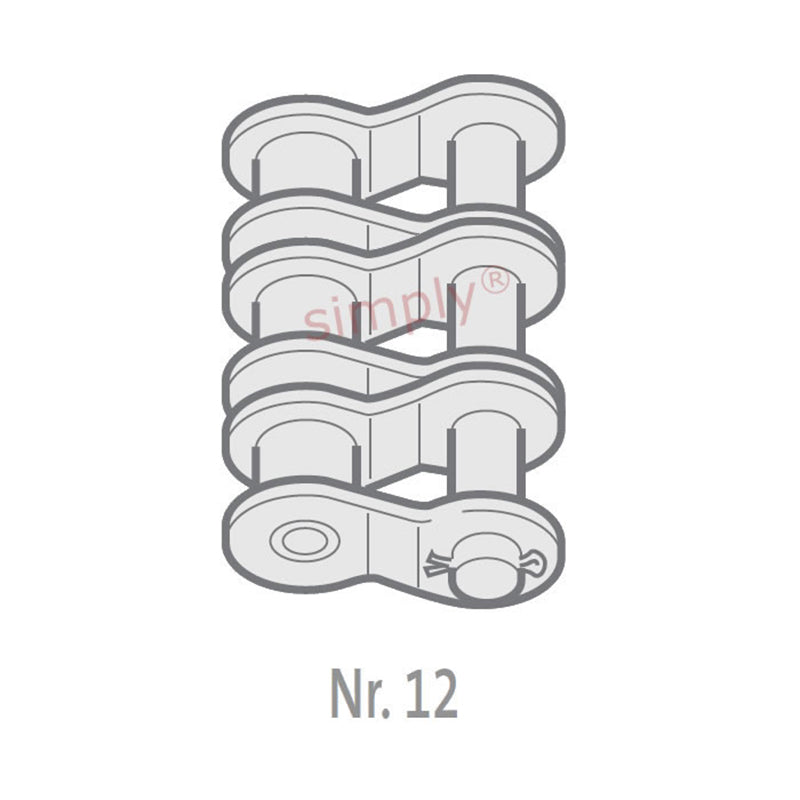

| Renold No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.75mm |
| Roller Diameter max (C) | = | 8.51mm |
| Plate Height max (D) | = | 11.7mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 4.45mm |
| Pin Length max (H2) | = | 44.3mm |
| Connecting Link Extension max (J) | = | 2mm |
| Transverse Pitch nom (K) | = | 13.92mm |
| ISO606 Tensile Strength min | = | 44500 N |
| Weight | = | 0.006kg/m |
