SKU: 06B-3-SD-NO26-RENOLD
Renold SD 06B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
- Regular price
- €6,89 ex VAT
- Sale price
- €6,89
- Regular price
-
In stock
Quantity Price Breaks
2
€6,13
5
€5,79
10
€5,72
29
€5,65
49
€5,58
75
€5,51
100
€5,17
200
€5,10
250
€5,03
500
€4,96
1000
€4,82
SKU:
06B-3-SD-NO26-RENOLD
Renold SD 06B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
- Regular price
- €6,89 ex VAT
- Sale price
- €6,89
- Regular price
-
Description

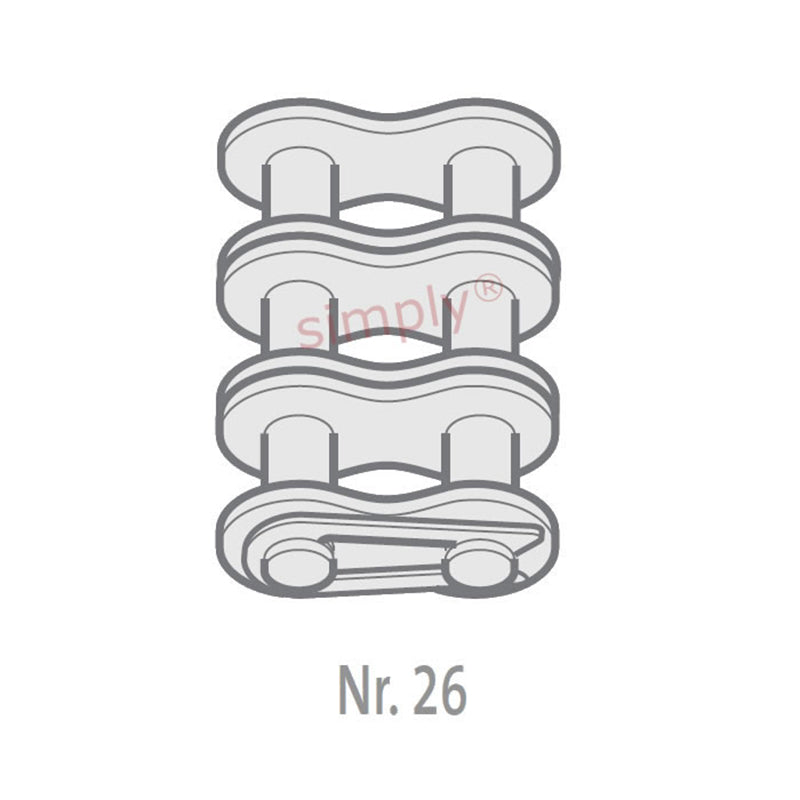

| Renold No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 0.375 inch |
| Pitch (A) | = | 9.525mm |
| Inside Width min (B) | = | 5.72mm |
| Roller Diameter max (C) | = | 6.35mm |
| Plate Height max (D) | = | 8.2mm |
| Plate Width Inner max (E) | = | 1.25mm |
| Plate Width Outer max (F) | = | 1mm |
| Pin Diameter max (G) | = | 3.28mm |
| Pin Length max (H1) | = | 35.6mm |
| Connecting Link Extension max (J) | = | 3mm |
| ISO606 Tensile Strength min | = | 26250 N |
| Weight | = | 0.003kg/m |
