SKU: 06B-1-SNX-NO26-RENOLD
Renold SYNO 06B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
- Regular price
- €14,85 ex VAT
- Sale price
- €14,85
- Regular price
-
In stock
Quantity Price Breaks
2
€13,22
5
€12,47
10
€12,33
29
€12,18
49
€12,03
75
€11,88
100
€11,14
200
€10,99
250
€10,84
500
€10,69
1000
€10,40
SKU:
06B-1-SNX-NO26-RENOLD
Renold SYNO 06B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
- Regular price
- €14,85 ex VAT
- Sale price
- €14,85
- Regular price
-
Description

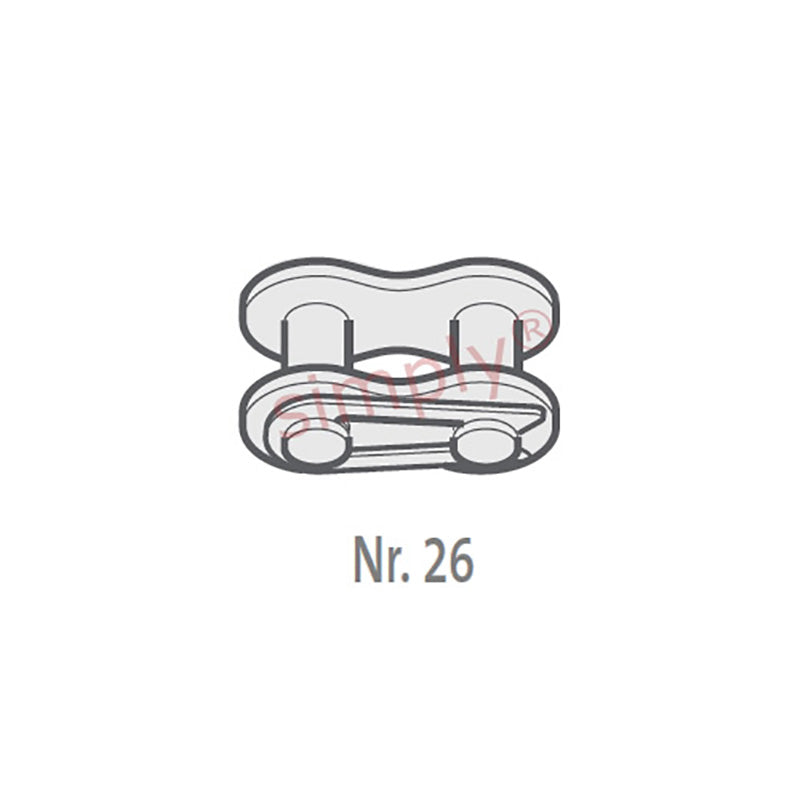

| Renold No. 26 European (BS) Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 0.375 inch |
| Pitch (A) | = | 9.525mm |
| Inside Width min (B) | = | 5.72mm |
| Roller Diameter max (C) | = | 6.35mm |
| Plate Height max (D) | = | 8.2mm |
| Plate Width Inner max (E) | = | 1.29mm |
| Plate Width Outer max (F) | = | 1.04mm |
| Pin Diameter max (G) | = | 3.28mm |
| Pin Length max (H1) | = | 12.5mm |
| Connecting Link Extension max (J) | = | 1.3mm |
| ISO606 Tensile Strength min | = | 8900 N |
| Weight | = | 0.001kg/m |
