SKU: 6309NRC3-NTN

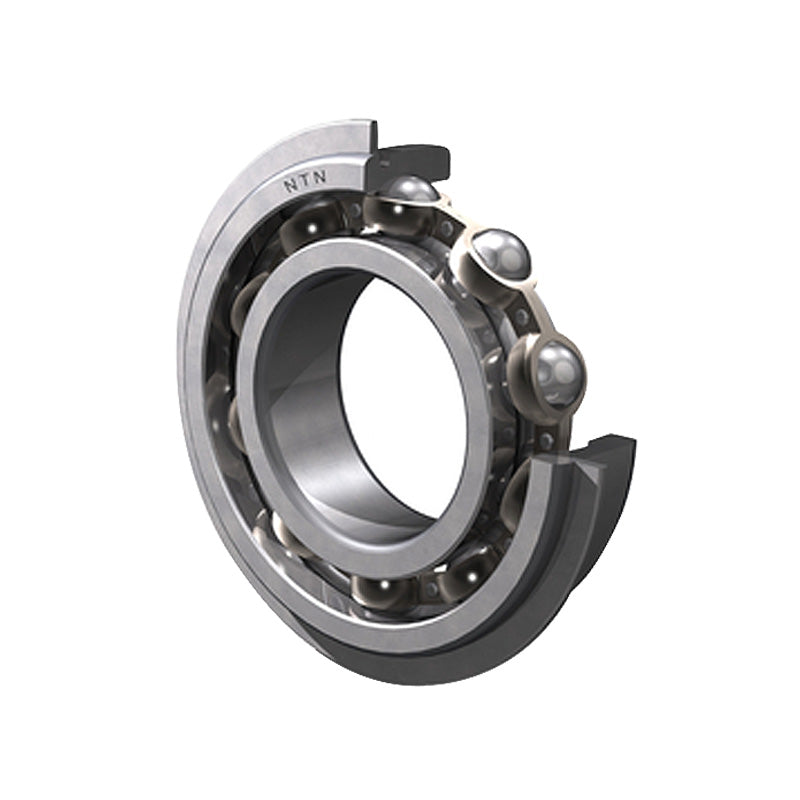

NTN 6309NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 45x100x25mm
NTN 6309NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 45x100x25mm
Regular price
€92,41
ex VAT
Regular price
Sale price
€92,41
ex VAT
Equivalent to: 309KGC3 309SGC3 43309C3
In stock
Price Break
3+
€70,38
5+
€66,43
10+
€65,64
25+
€64,85
49+
€64,05
74+
€63,26
99+
€59,31
199+
€58,52
249+
€57,73
499+
€56,94
999+
€55,36
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: 309KGC3 309SGC3 43309C3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
Technical

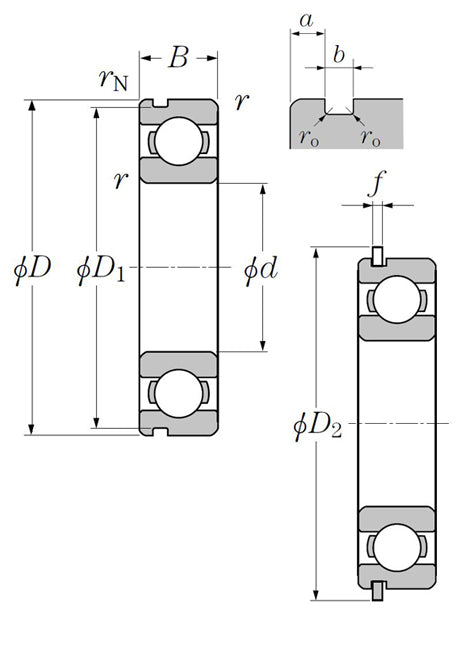

| --- | Bearing dimensions |
|---|---|
| d | 45mm |
| D | 100mm |
| B | 25mm |
| r<sub>s</sub> min | 1.5mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 58.5 kN |
| C<sub>or</sub> | 32 kN |
| C<sub>u</sub> | 2.5 kN |
| f<sub>0</sub> | 13.1 kN |
| Grease | 7000 rpm |
| Oil | 8200 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 96.8mm |
| a Max. | 3.28mm |
| b Min. | 2.7mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 106.5mm |
| f Max. | 2.46mm |

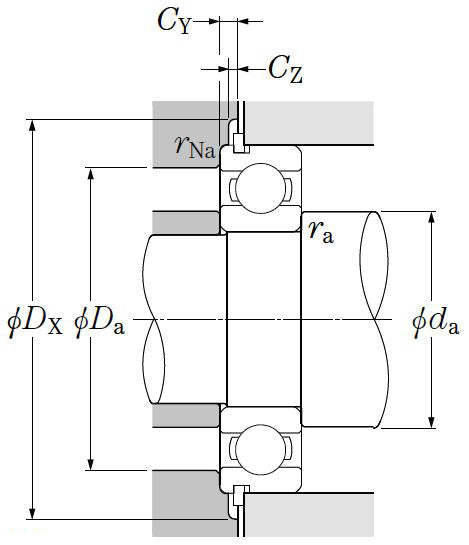

| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 53mm |
| d<sub>a</sub> Max. | 61.5mm |
| D<sub>a</sub> Max. | 92mm |
| D<sub>X</sub> (approx) | 108mm |
| C<sub>Y</sub> Max. | 5.4mm |
| C<sub>Z</sub> Min. | 2.5mm |
| r<sub>as</sub> Max. | 1.5mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.814 kg |
