SKU: 6316-M-C3-FAG

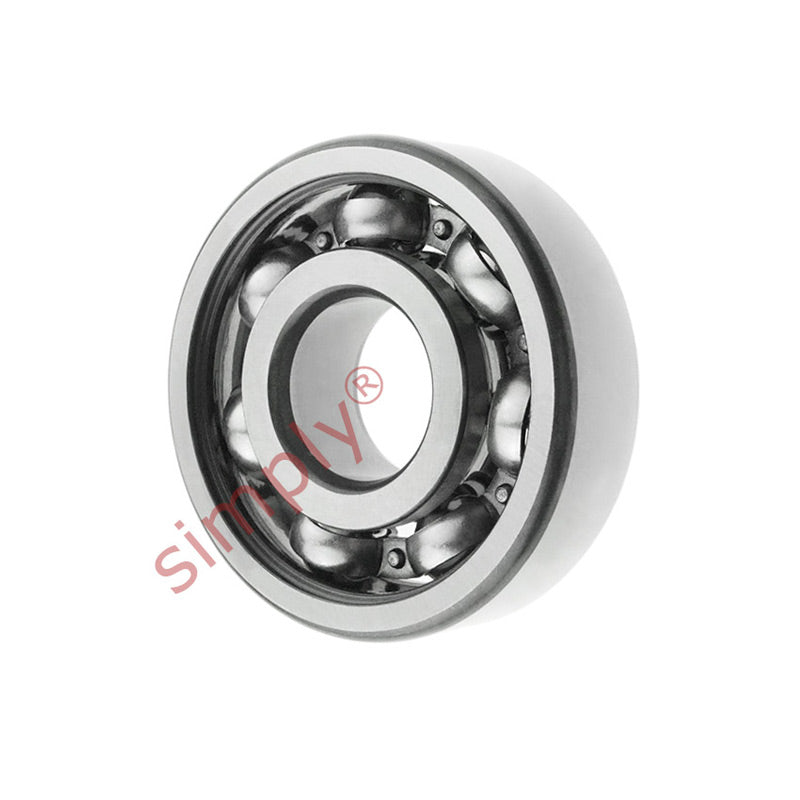

FAG 6316MC3 Open Deep Groove Ball Bearing 80x170x39mm
- Regular price
- €363,65 ex VAT
- Sale price
- €363,65
- Regular price
-
In stock
Quantity Price Breaks
5+
€360,01
10+
€345,47
20+
€338,19
50+
€327,29
100+
€320,01
500+
€301,83
1000+
€254,56
SKU:
6316-M-C3-FAG
FAG 6316MC3 Open Deep Groove Ball Bearing 80x170x39mm
- Regular price
- €363,65 ex VAT
- Sale price
- €363,65
- Regular price
-
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Technical
| d | = | 80mm |
| D | = | 170mm |
| B | = | 39mm |
| Dynamic load C | = | 130 kN |
| Static load Co | = | 86.5 kN |
| Fatigue load limit Pu | = | 3.25 kN |
| Reference speed | = | 8500 rpm |
| Limiting speed | = | 5300 rpm |
| Mass | = | 3.6 kg |
| d1 | = | 108mm |
| D1 | = | 142mm |
| D2 | = | 147mm |
| r1r2 min | = | 2.1mm |
| da min | = | 92mm |
| Da max | = | 158mm |
| ra max | = | 2mm |
| Calc factor Kr | = | 0.03 |
| Calc factor | = | 13 |
